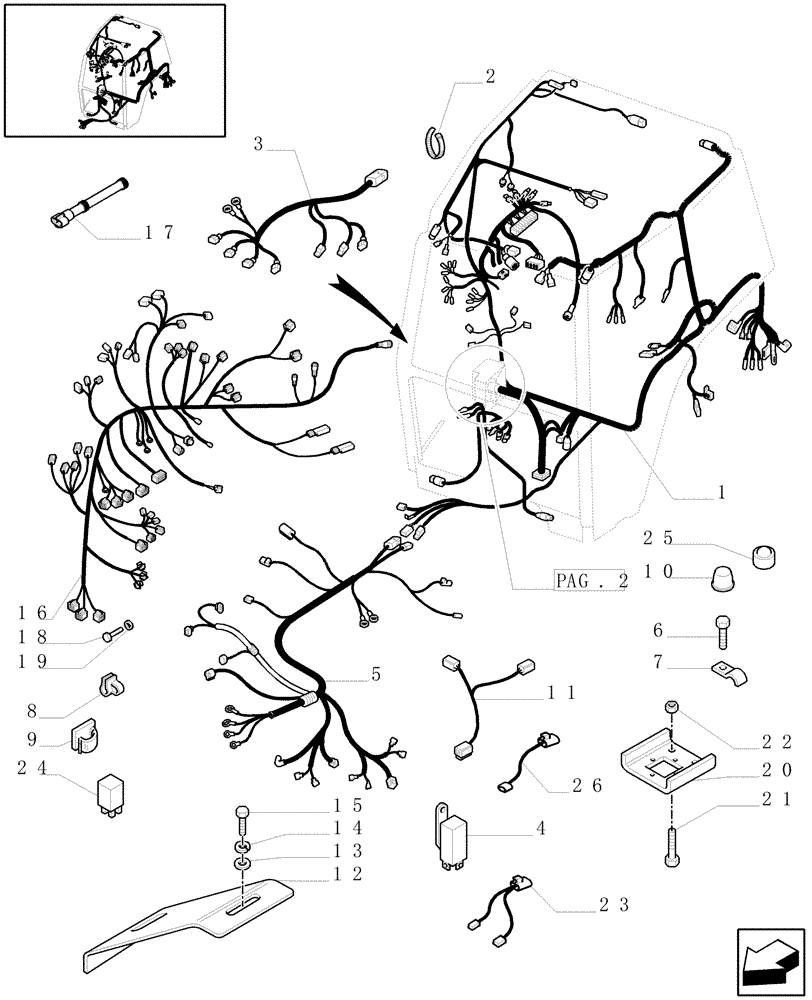

Запчасти Case IH MXM130 (1.91.4[01B]) - CABLES AND FUSE BOX - D5498 (10) - OPERATORS PLATFORM/CAB

1

87539098

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, MX155

1шт.

1

87537902

WIRE HARNESS

MXM175, MXM190

1шт.

W/Full Power Shift

1шт.

1

87539090

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, MX155

1шт.

W/Full Power Shift Trans. 18 x 6 (40 KPH 4WD) and 17 x 6 (30 KPH) Equip. 281

1шт.

1

87539054

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140

1шт.

W/HI-LO Trans. 24 x 12 (40 KPH) Equip. 272

1шт.

1

87538434

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

3

82011886

WIRE HARNESS

Console, RH

1шт.

4

82015353

RELAY,12V, 0.88A

Turn Indicator

1шт.

5

87331323

WIRE HARNESS

Main Front, MXM120, MXM130, MXM140, MXM155

1шт.

5

87331324

WIRE HARNESS

Main Front, MXM175, MXM190

1шт.

6

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 16

3шт.

7

83976853

CLIP,12.7mm, Coat, 11.5mm Bolt Hole, J Type

1шт.

8

81813738

CLIP

1шт.

9

83918745

SPRING CLIP

4шт.

10

81864706

BOOT

3шт.

11

82015068

WIRE HARNESS

HPL Pump, Open Center, MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

12

82015352

PLATE

2шт.

13

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

14

12035670

LOCK WASHER

M6

4шт.

15

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

16

82034562

WIRE HARNESS

MXM175, MXM190

1шт.

Main Electronic Full Power shift

1шт.

17

82036572

WIRE HARNESS,120 ohm

1шт.

For MXM175, MXM190 W/Electronic Remote

1шт.

18

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

19

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

20

82035501

BRACKET

MXM175, MXM190

1шт.

21

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

4шт.

21

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

23

82028417

WIRE HARNESS

Trans. Control

1шт.

24

82017871

RELAY,12V, 20A

MXM175, MXM190

2шт.

25

87533425

COVER,M6

2шт.

26

87307701

DIODE

To Fuel Filter, Start Serial: ACM257426

1шт.
