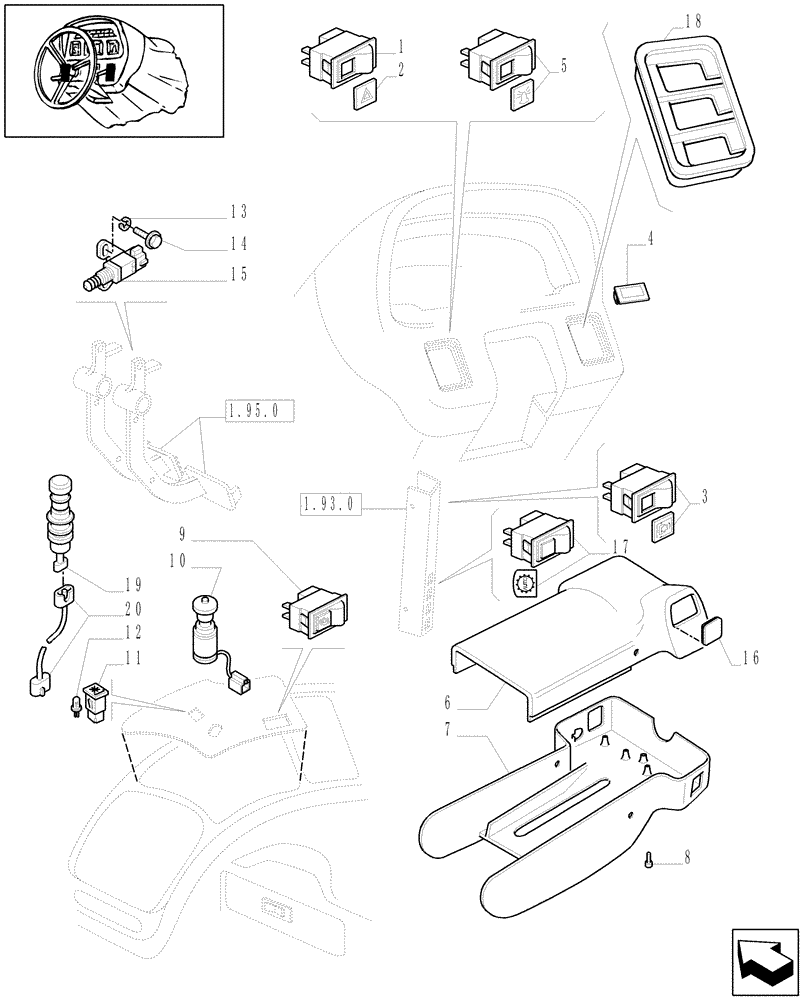

Запчасти Case IH MXM130 (1.91.1[02]) - SWITCHES, INSTRUMENT PANEL (10) - OPERATORS PLATFORM/CAB

1

5150954

LIGHT SWITCH

1шт.

2

5150933

SYMBOLS

SYMBOL Emergency Lights

1шт.

3

82018620

SWITCH ASSY

PTO Softstart

1шт.

4

5151033

PLASTIC PLUG

7шт.

5

82007618

SWITCH ASSY

Beacon

1шт.

6

82014494

COVER

Upper, Serial Range: -223199

1шт.

6

82034647

COVER

Upper, Start Serial: 223200

1шт.

7

82007773

COVER

Lower

1шт.

8

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

6шт.

9

82007112

SWITCH ASSY

PTO Brake

1шт.

10

82027012

SWITCH ASSY

Rear PTO, Brake, 4 Pin, Serial Range: -ACM265008

1шт.

11

81869846

LAMP

PTO Speed Selector

1шт.

12

14143990

BULB,12V, 3W

1шт.

13

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

14

14303324

HEX SOC SCREW,M4 x 20mm, Cl 8.8, Full Thd

4шт.

15

82026949

PUSH BUTTON SWITCH

Brake

2шт.

16

82004988

PLUG

MXM120, MXM130, MXM140, Serial Range: -223199

1шт.

W/Mec. Trans. 20 x 16

1шт.

16

82035352

PLUG

, Start Serial: 223200

1шт.

17

82026205

SWITCH ASSY

Trans Auto Function

1шт.

W/Full Power Shift trans. 18 x 6 (40 KPH-4WD) and 17 x 6 (30 KPH-2WD) Equip. 281

1шт.

18

5151075

HOUSING

2шт.

19

87311254

SWITCH ASSY

Rear PTO, Start Serial: ACM265009

1шт.

20

87614707

WIRE HARNESS

1шт.
