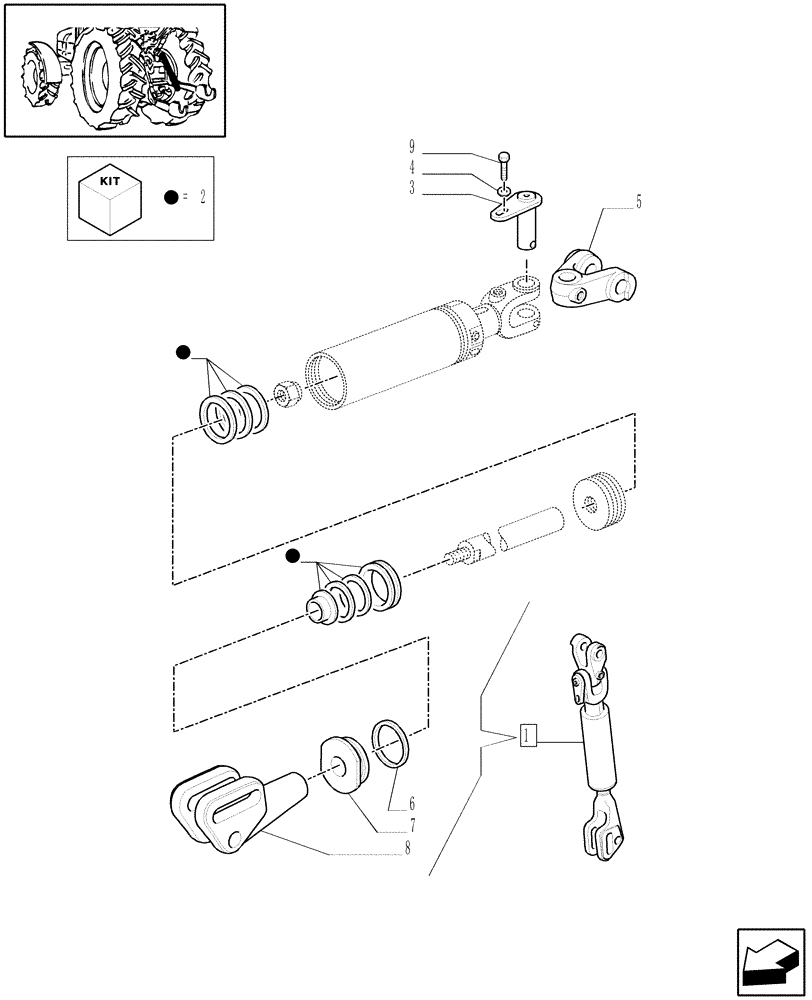

Запчасти Case IH MXM130 (1.89.6/09E[01A]) - (VAR.900) HYDR. ADJUST. OF RIGHT TIE-ROD AND 3 POINT LINK FOR CLOSED CCLS CENTRE - TIE-ROD - D5165 (09) - IMPLEMENT LIFT

1

47130643

LIFT RAM WITH PREDIS

1шт.

2

9970100

SEAL

1шт.

3

47130642

PIN,25mm OD x 92mm L

1шт.

4

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

47130638

YOKE

1шт.

6

9967845

RING

1шт.

7

9970457

END PLATE

1шт.

8

9970458

YOKE

1шт.

9

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.
