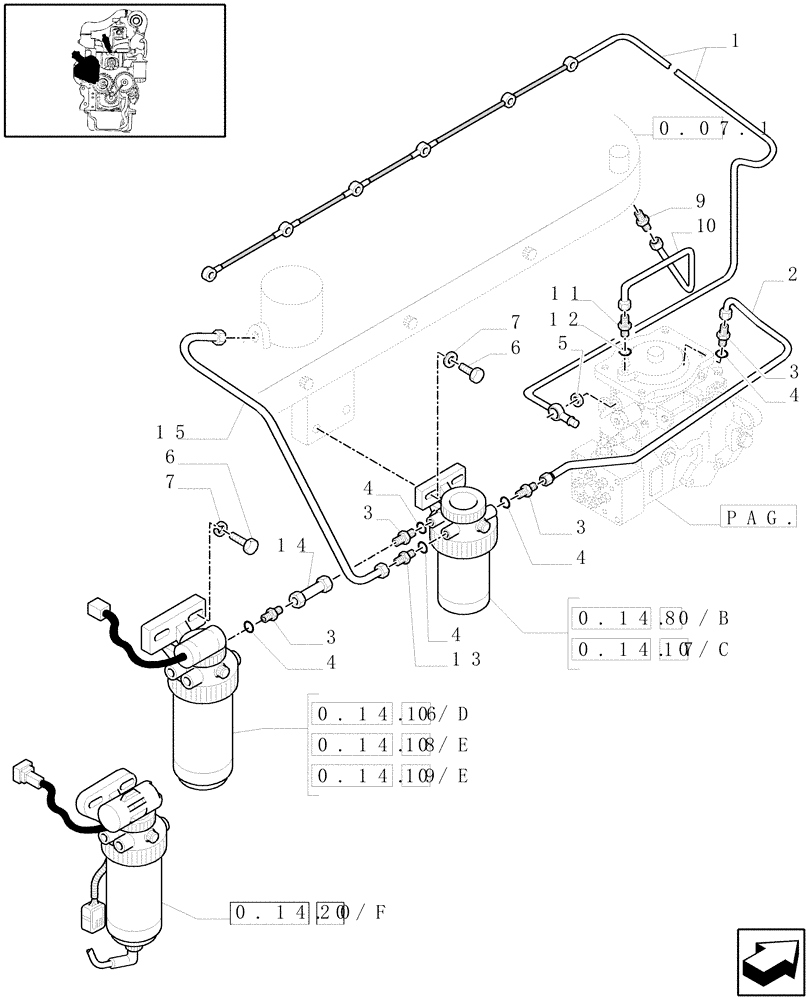

Запчасти Case IH MXM130 (0.14.0[03]) - 2 FILTERS FUEL SYSTEM (01) - ENGINE

1

87802557

TUBE

1шт.

2

87800521

FUEL TUBE,7.92 mm OD x 258.6, 54.3 mm L

9/16"-24

1шт.

3

83947824

FITTING,9/16"-24 x 1/2"-20 O-Ring

4шт.

4

83904845

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

4шт.

5

87801445

COPPER WASHER,12.3mm ID x 17mm OD x 1.75mm Thk

1шт.

6

83935461

HEX SOC SCREW,3/8" - 16 x 1.50"

4шт.

7

83908991

WASHER,0.41" ID x 0.75" OD x 0.1" Thk

4шт.

8

87802168

FILTER ASSY

5 Micron, Serial Range: -218235

1шт.

9

390275S

FITTING

3/16"

1шт.

10

87801959

TUBE,4.75 mm OD x 75.2, 52 mm L

3/16"

1шт.

11

87840209

FITTING

3/16"

1шт.

12

81867564

GASKET,8.05mm ID x 11.3mm OD x 0.9mm Thk

1шт.

13

82894025

FITTING

3/16", 1/2"-20

1шт.

14

87801397

FUEL TUBE,8.05 mm OD x 79 mm L

9/16"-24

1шт.

15

87801627

TUBE,4.75 mm OD x 178.3, 155.7 mm L

3/8"-24, 3/16"

1шт.

16

87802331

FILTER ASSY

Fuel, 30 Micron, Serial Range: -218235

1шт.

17

87339387

FILTER ASSY

Fuel, Start Serial: D5368

1шт.

17

87803436

FILTER ASSY

Fuel, 5 Micron, Serial Range: 218236-C5368

1шт.

18

87803437

FILTER ASSY

Fuel, 30 Micron, Serial Range: 218236-HA163029

1шт.

19

87327686

FILTER ASSY

Fuel, Serial Range: HA163030-FB175162

1шт.

20

87374411

FILTER ASSY

Fuel, Start Serial: FB175163

1шт.
