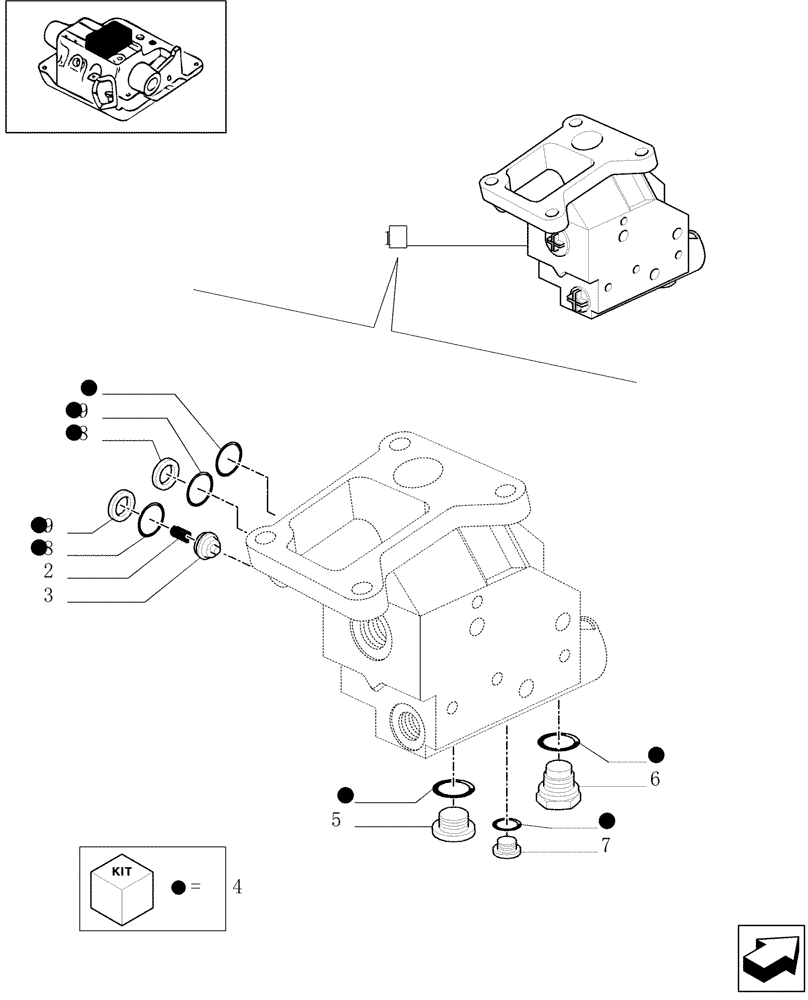

Запчасти Case IH MXM130 (1.82.7/ A) - CENTRAL HOUSING BREAKDOWN (REMOTE VALVE) (07) - HYDRAULIC SYSTEM

1

5195158

BODY

Assy (Support Column)

1шт.

2

5191717

SPRING

1шт.

3

5191716

VALVE

BUSHING

1шт.

4

5195156

SEAL KIT

1шт.

5

10119011

PLUG,M27 x 2 x 20, Cl5.8

1шт.

6

5191715

PLUG

1шт.

7

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

8

5190751

O-RING,2.5mm Thk x 18mm ID

18 x 1.5

2шт.

9

5195150

BACK-UP RING

2шт.
