(1.82.713/03[02A]) - (VAR.414) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - D5906

Запчасти Case IH MXM130 (1.82.713/03[02A]) - (VAR.414) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - D5906 (07) - HYDRAULIC SYSTEM

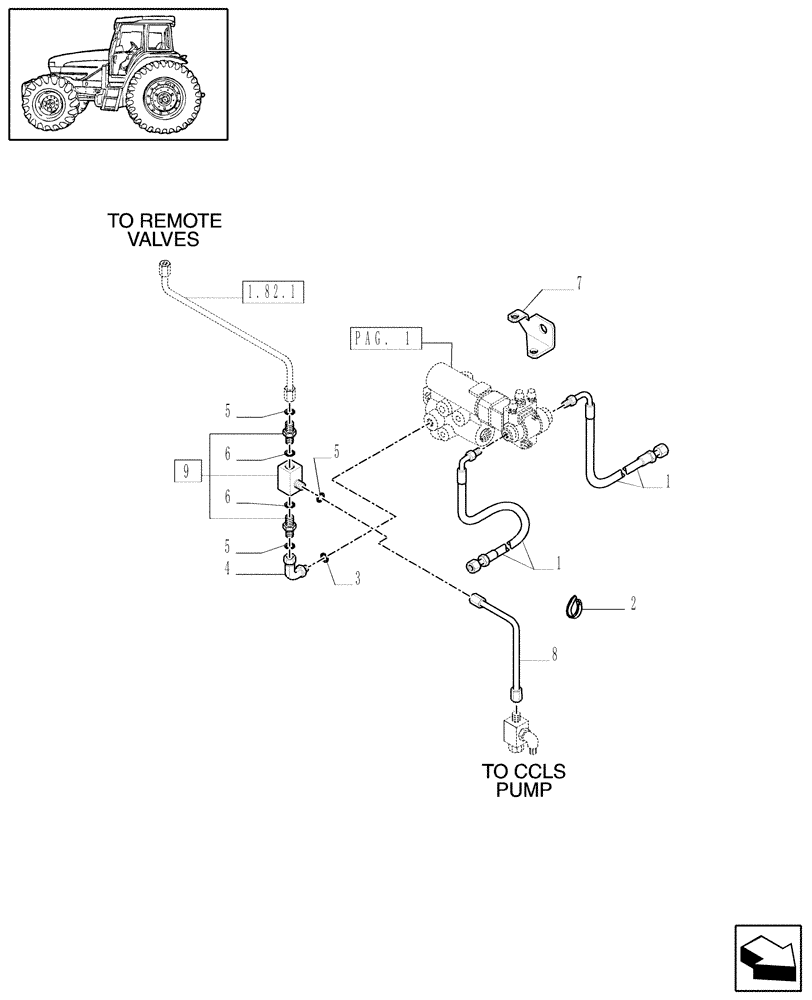

Схема запчастей Case IH MXM130 - (1.82.713/03[02A]) - (VAR.414) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - D5906 (07) - HYDRAULIC SYSTEM
1
1.82.1
6
4
9
5
3
8
1
7
5
2
5
6
pag. 1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87666225

HOSE

2шт.

2

14560087

CABLE TIE,103mm, Black

CABLE STRAP

2шт.

3

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

4

47126309

ELBOW

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

7

5184505

SUPPORT

1шт.

8

5189764

BRAKE LINE

1шт.

9

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

Выбрано товаров: 9
