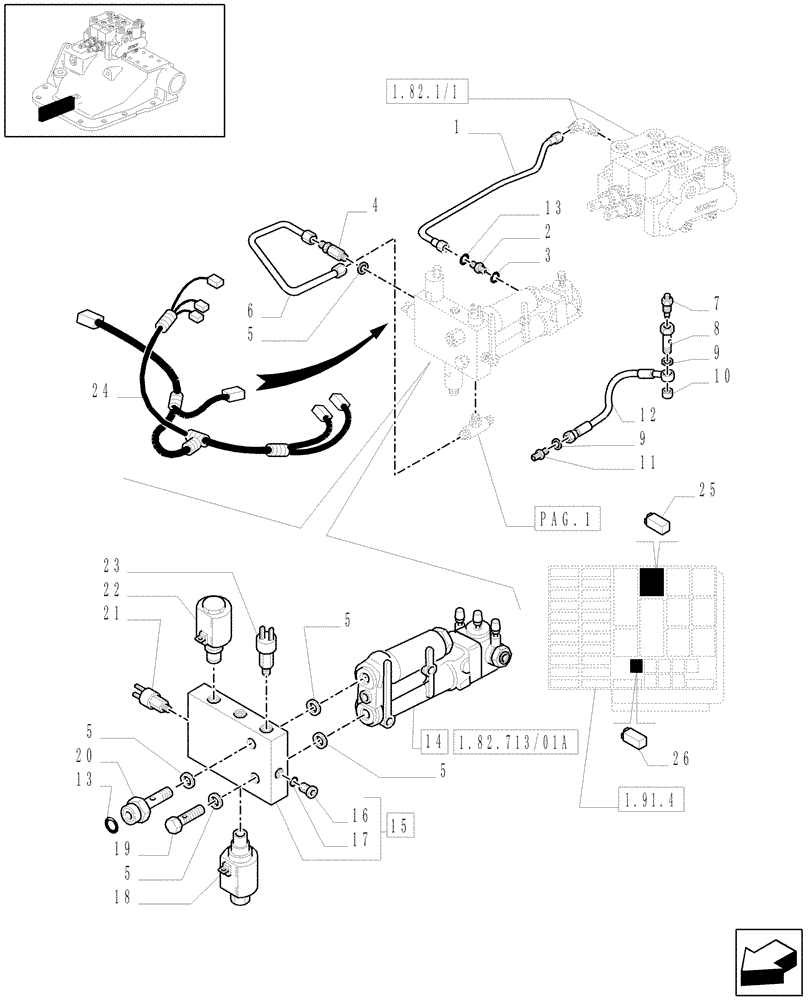

Запчасти Case IH MXM130 (1.82.713/01[02]) - (VAR.372) TRAILER BRAKE VALVE FOR OPEN CENTRE (ITALY) (07) - HYDRAULIC SYSTEM

1

5185466

BRAKE LINE

1шт.

2

5185526

HYD CONNECTOR

1-3/16"-12, M18 x 1.5

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

5157483

VALVE, PRESSURE CONT

1шт.

5

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

5шт.

6

44909675

TUBE

1шт.

7

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

8

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

M12 x 1.25 x 27

2шт.

9

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

4шт.

10

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

11

5155506

FITTING

2шт.

12

82025005

FLEXIBLE HOSE

490 mm lg

1шт.

12

82020138

FLEXIBLE HOSE,4.75mm ID x 430mm L

430 mm lg

1шт.

13

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

14

47126819

BRAKE VALVE

Bosch

1шт.

15

5157491

BLOCK

1шт.

16

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

17

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

18

5157480

SOLENOID VALVE

1шт.

19

5157489

BANJO BOLT

M18 x 1.5 x 42

1шт.

20

5185522

HYD CONNECTOR

1шт.

21

5157750

PRESSURE SWITCH

Oil Pressure

1шт.

22

5157481

SOLENOID VALVE

1шт.

23

5161047

PRESSURE SWITCH

3 Bar

1шт.

24

82006060

WIRE HARNESS

1шт.

25

83990084

RELAY

1шт.

26

83990024

RELAY

1шт.
