(1.82.7/13[01]) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - BATTERY WITH 4 CTRL VALVES

Запчасти Case IH MXM130 (1.82.7/13[01]) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - BATTERY WITH 4 CTRL VALVES (07) - HYDRAULIC SYSTEM

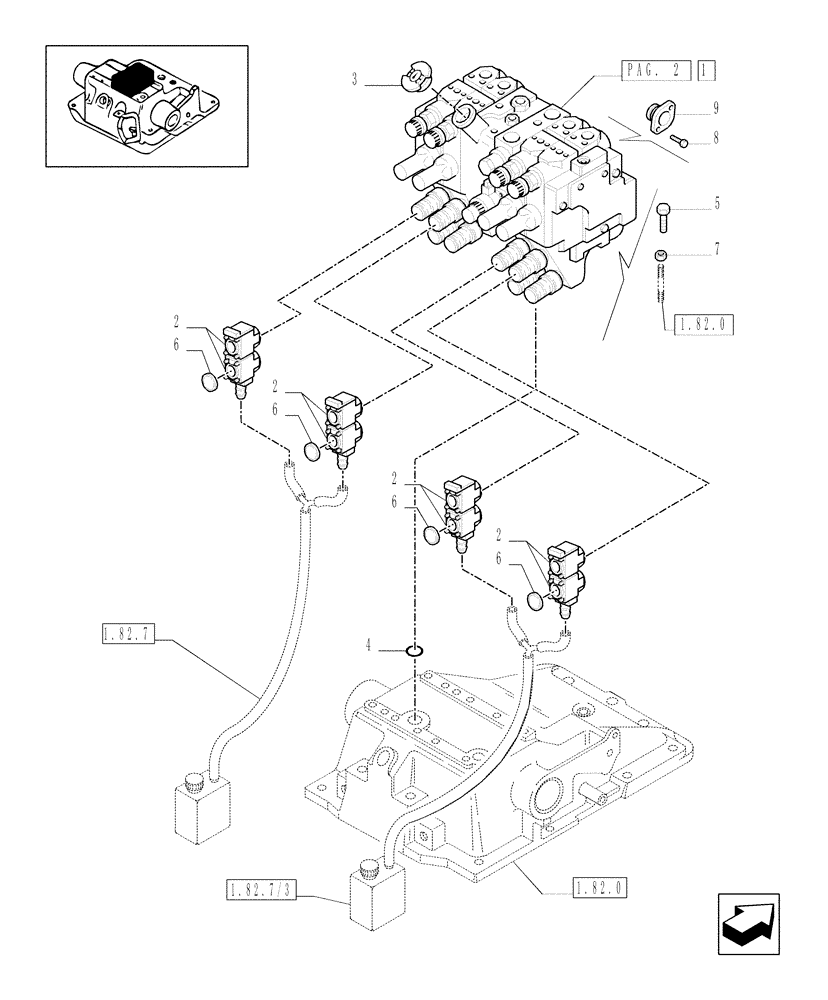

Схема запчастей Case IH MXM130 - (1.82.7/13[01]) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - BATTERY WITH 4 CTRL VALVES (07) - HYDRAULIC SYSTEM
7
9
6
2
5
3
2
2
6
2
6
1.82.7
1.82.0
1.82.7/3
1.82.0
pag. 2
1
6
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194805

CONTROL VALVE

Assy

1шт.

2

5188836

DUST CAP

4шт.

3

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

4

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

5

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

6

82029892

LENS

Green

2шт.

6

82029893

LENS

Blue

2шт.

6

82029894

DISC,20mm OD x 5.5mm Thk, Green, PA6+30% Glass Fiber

Brown

2шт.

6

82029895

DISC,20mm D, Black

Black

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

8шт.

9

5189606

SUPPORT

4шт.

Выбрано товаров: 12
