Запчасти Case IH MXM130 (1.82.7/01B[01]) - DOUBLE-ACTING EXTERNAL CONTROL VALVE W/FLOAT AND AUTOMATIC CUTOUT BREAKDOWN - C5500 (07) - HYDRAULIC SYSTEM

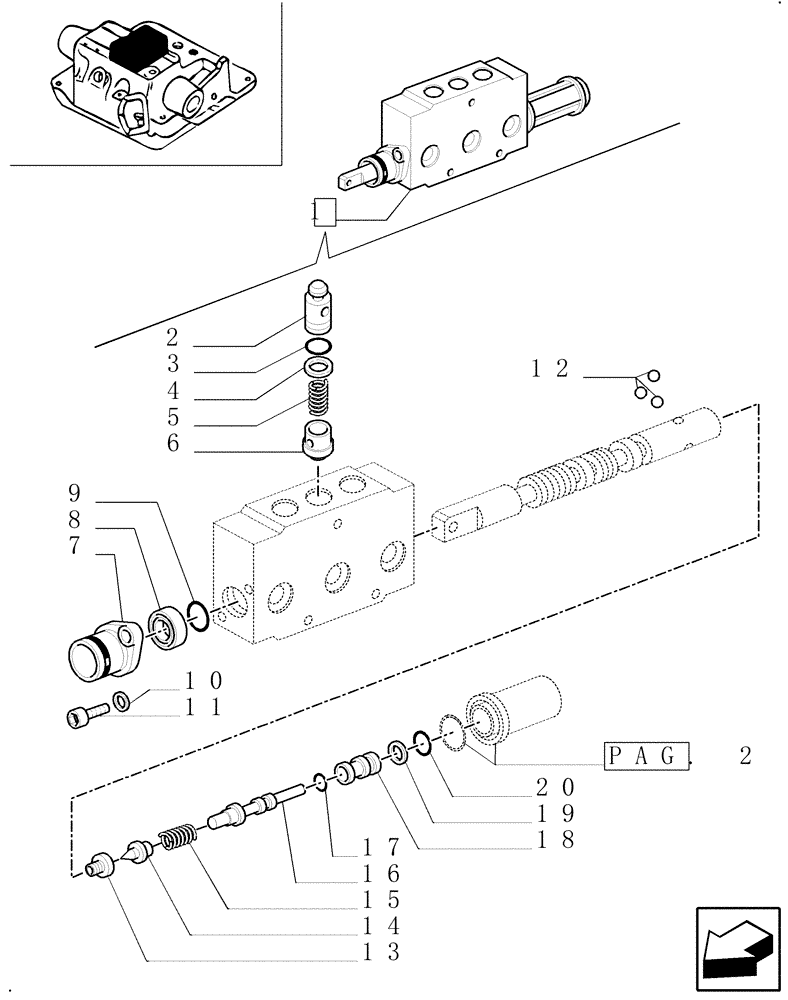

Схема запчастей Case IH MXM130 - (1.82.7/01B[01]) - DOUBLE-ACTING EXTERNAL CONTROL VALVE W/FLOAT AND AUTOMATIC CUTOUT BREAKDOWN - C5500 (07) - HYDRAULIC SYSTEM
16
6
11
pag. 2
14
10
8
13
12
20
3
17
19
2
5
18
7
9
4
1
15

Артикул

Название

Примечание

Количество

1

5166993

CONTROL VALVE

Assy

1шт.

2

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

3

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

(M10.82 ID x 1.78 Thk)

1шт.

4

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

5

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

6

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

7

5167124

SUPPORT

1шт.

8

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

9

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.

12

20063420

BALL,3.96mm OD, Gr 100

3шт.

13

5143554

PLUG,Slot, M7 x 0.75

1шт.

14

5143555

PIN,5.5mm OD x 12mm L

1шт.

15

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

16

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

17

5143558

O-RING,1.78mm Thk x 2.54mm ID

1.78 x 2.57

1шт.

18

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

19

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

20

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

M8.73 ID x 1.78 Thk

1шт.

Выбрано товаров: 20
