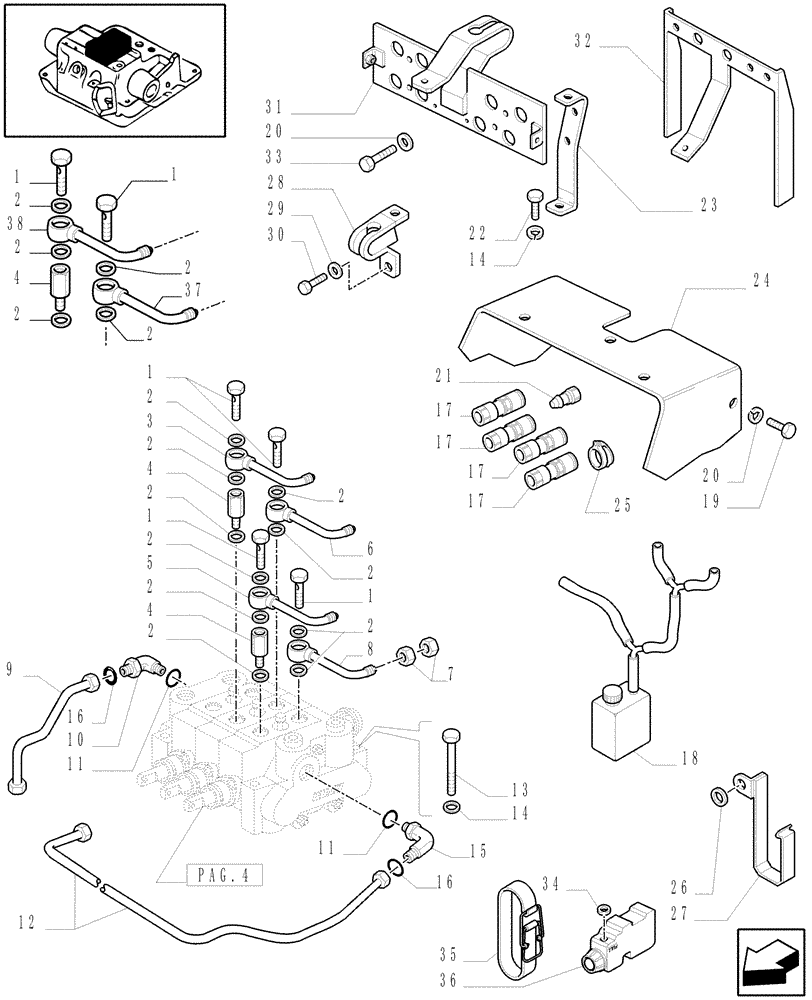

Запчасти Case IH MXM130 (1.82.7/01[03]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) / MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE) - D5500 (07) - HYDRAULIC SYSTEM

1

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5 x 34

6шт.

2

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

14шт.

3

5155504

HYD TUBE

For 2nd Remote Valve

1шт.

4

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

2шт.

5

5155517

HYD TUBE

For 2nd Remote Valve

1шт.

6

5155501

HYD TUBE

For 1st Remote Valve

1шт.

7

5129168

BHD LOCK NUT,M24 x 1.5

M24 x 1.5

8шт.

8

5155515

HYD TUBE

1st Remote Valve

1шт.

9

5191157

HYD TUBE

1шт.

10

5185042

ELBOW

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

12

5185460

HYD TUBE

1шт.

13

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

3шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

5шт.

15

5185577

ELBOW

1шт.

16

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

17

5189323

COUPLING, QUICK, FEM,107.3mm L

include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

18

87304777

BOTTLE

1шт.

19

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

5шт.

20

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

21

5101741

QUICK MALE COUPLING

4шт.

22

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

1шт.

22

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

23

5155814

BRACKET

RH

1шт.

23

5155815

BRACKET

LH

1шт.

24

5155816

GUARD

1шт.

25

47132126

DUST CAP,Green

Green

1шт.

25

47132127

DUST CAP,Blue

1шт.

26

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

1шт.

27

82026191

BRACKET

1шт.

28

5189351

BRACKET

1шт.

29

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

30

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

30

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

31

82015506

BRACKET

1шт.

32

82027399

GUARD

1шт.

33

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

3шт.

34

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

35

82032061

CLIP

2шт.

36

82029231

BOTTLE

, Serial Range: -C6264

2шт.

36

47922580

BOTTLE

, Start Serial: D6264

2шт.

37

5155519

HYD TUBE

For 3rd Remote Valve

1шт.

38

5155521

HYD TUBE

For 3rd Remote Valve

1шт.
