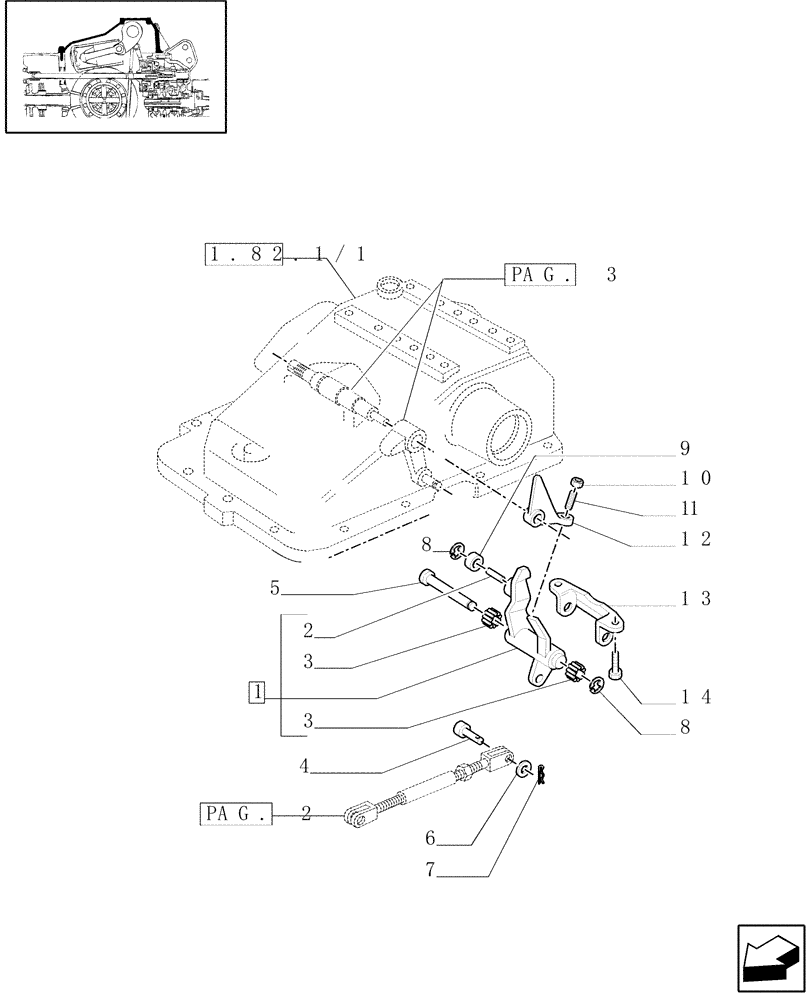

Запчасти Case IH MXM130 (1.82.5[04]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) /MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE) (07) - HYDRAULIC SYSTEM

1

5150141

LEVER

Assy

1шт.

2

5129392

PIN,7.5mm OD x 22.5mm L

1шт.

3

4964519

ROLLER BEARING,Needle, 18mm ID x 16mm OD x 10.5mm W

2шт.

4

10050811

PIN,8mm OD x 22mm L

1шт.

5

5146554

PIN

1шт.

6

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

7

10734201

COTTER PIN,M2 x 12

1шт.

8

11065676

SNAP RING,M8, Ext

4шт.

9

5111028

ROLLER,18mm OD x 10mm L

1шт.

10

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

11

13713214

SET SCREW,Sl Hex Skt, M8 x 25mm

1шт.

12

5150143

LEVER

1шт.

13

5166988

SUPPORT

1шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
