(1.82.5[01]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) /MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE)

Запчасти Case IH MXM130 (1.82.5[01]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) /MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE) (07) - HYDRAULIC SYSTEM

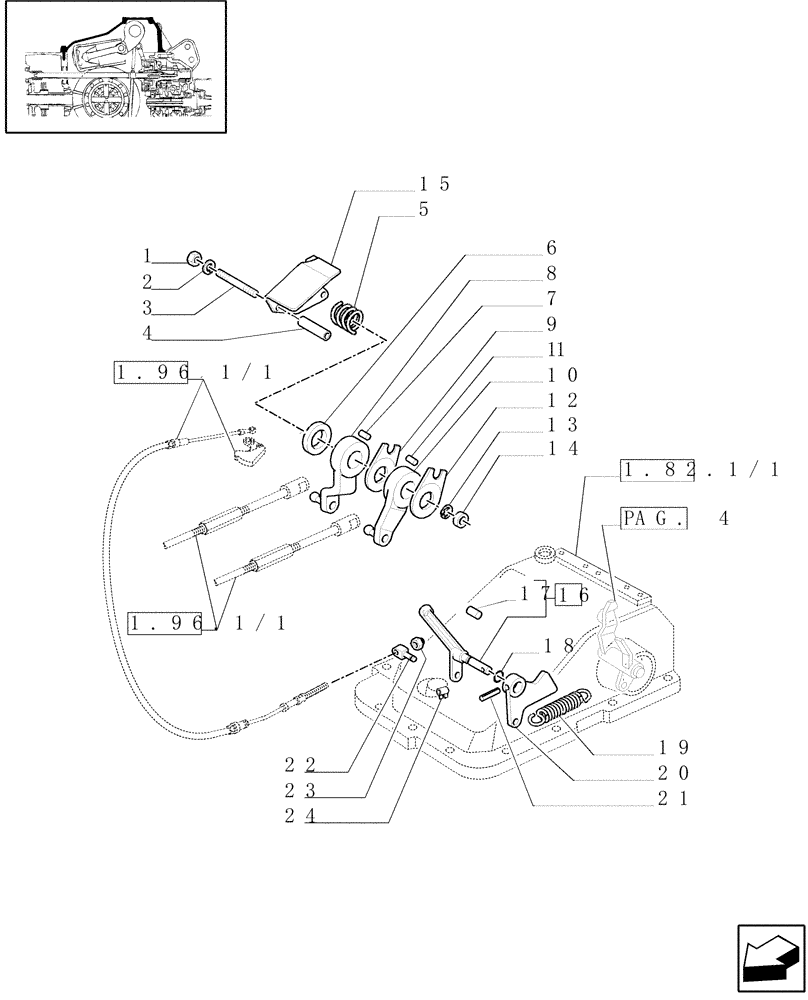

Схема запчастей Case IH MXM130 - (1.82.5[01]) - MECHANICAL GEAR BOX 20X16 (40 KM/H) /MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE) (07) - HYDRAULIC SYSTEM
1.82.1/1
1.96.1/1
15
7
18
24
17
12
2
1
p
10
16
1.96.1/1
14
20
6
4
21
ag. 4
23
5
9
22
1
19
3
8
1
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

3

13544320

STUD

M8

3шт.

4

5117204

SPACER,8.5mm ID x 12mm OD x 51.5mm L

3шт.

5

4952761

SPRING,Compression, 34mm OD x 25.5mm L

1шт.

6

5165368

SHIM,22.2mm ID x 35mm OD x 2.5mm Thk

1шт.

7

10617620

KEY,5mm x 5mm x 10mm

1шт.

8

5165586

LEVER

1шт.

9

5165246

PLATE

1шт.

10

5150163

LEVER

1шт.

11

14721010

KEY,4mm x 4mm x 14mm

1шт.

12

5165184

PLATE

1шт.

13

11065676

SNAP RING,M8, Ext

1шт.

14

5111028

ROLLER,18mm OD x 10mm L

1шт.

15

5162439

PLATE

1шт.

16

5150145

LEVER

1шт.

17

5129392

PIN,7.5mm OD x 22.5mm L

1шт.

18

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

(M10.82 ID x 1.78 Thk)

1шт.

19

5158943

SPRING

1шт.

20

5150138

LEVER

1шт.

21

14163270

LOCK PIN,M4 x 26, Slotted

1шт.

22

5138330

PIN,5mm OD x 17.5mm L

1шт.

23

12574215

NUT,M6 x 1, Cl 8

1шт.

24

11063876

SPRING CLIP,M5 x 4mm

1шт.
