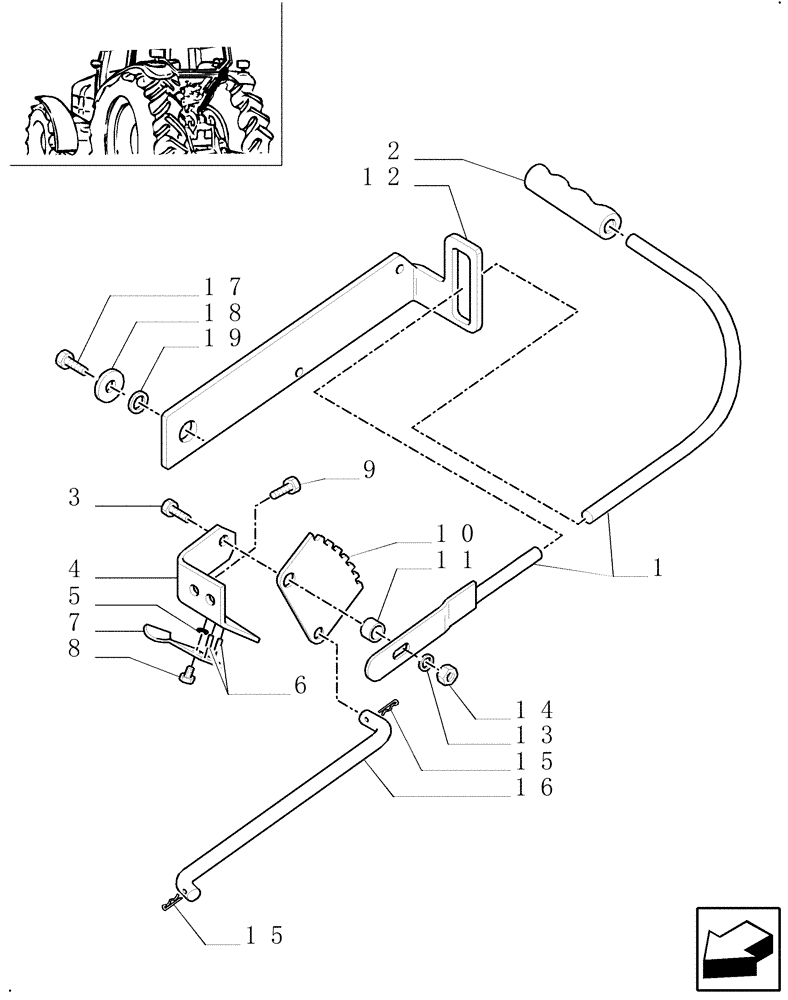

Запчасти Case IH MXM130 (1.82.2) - MECHANICAL GEAR BOX 20X16 (40 KM/H) /MECHANICALLY CONTROLLED HYDRAULIC LIFT (OPEN CENTRE) (07) - HYDRAULIC SYSTEM

1

82004221

LEVER

1шт.

2

82009333

KNOB

1шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

4

82026401

BRACKET

1шт.

5

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

6

14161470

LOCK PIN,M3 x 10, Slotted

2шт.

7

82860256

SPRING

1шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

9

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

82006077

TOOTHED SECTOR

1шт.

11

559979

SPACER

1шт.

12

82008720

GUIDE

1шт.

13

83934772

WASHER

M10

1шт.

14

14048721

NUT,M10 x 1.25, Cl 10

1шт.

15

83957394

PIN,0.072" x 0.82"

2шт.

16

82003854

TIE-ROD

1шт.

17

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

18

14497321

WASHER,24mm ID x 44mm OD

1шт.

19

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

1шт.
