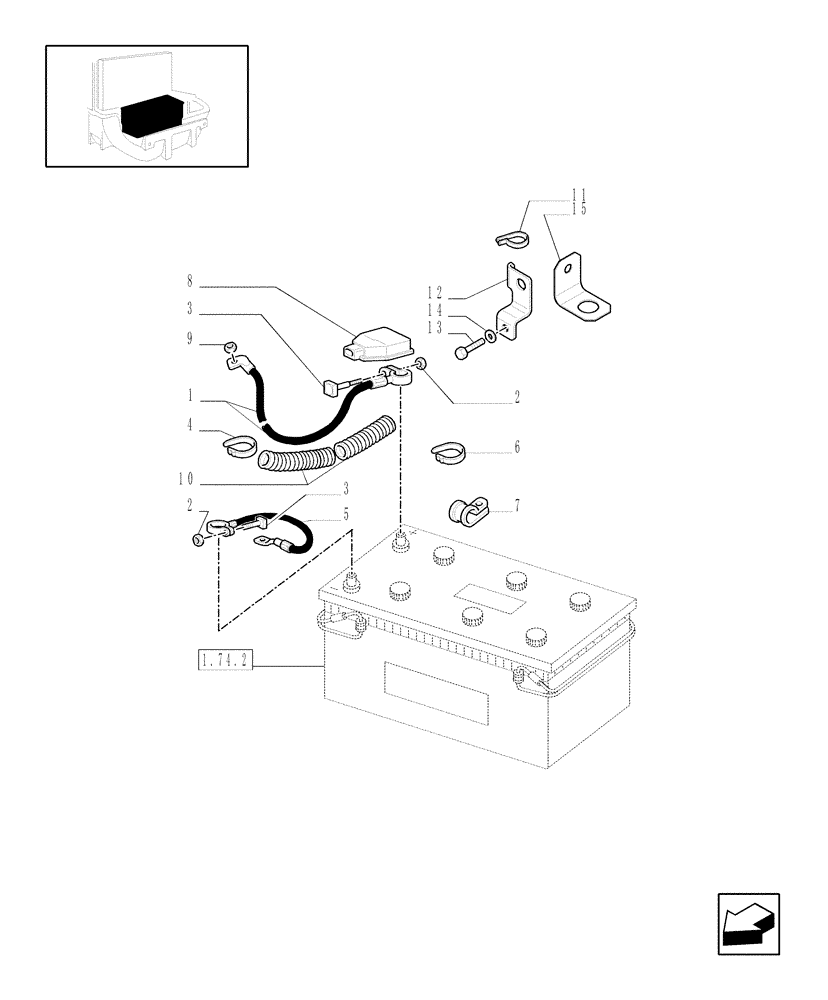

Запчасти Case IH MXM130 (1.75.3) - BATTERY, CABLES (06) - ELECTRICAL SYSTEMS

1

82030173

ELECTRIC CABLE

(2, 3, 4, 8, 10)

1шт.

2

82879527

NUT,Hex, M8

1шт.

3

81869762

BOLT

1шт.

4

5112712

COLLAR,M4.8 x 283

1шт.

5

82018975

GROUND CABLE

(2, 3)

1шт.

6

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

7

10450690

CLAMP,20mm, Coat, 9mm Bolt Hole, P Type

2шт.

8

82002797

COVER

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

10

82918747

SHIELD

1шт.

11

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

M22, Start Serial: ACM253609

1шт.

12

87329673

BRACKET

, Start Serial: ACM253609

1шт.

13

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

, Start Serial: ACM253609

1шт.

14

17094714

LOCK WASHER,M6 x 13

, Start Serial: ACM253609

1шт.

15

87306036

BRACKET

, Start Serial: ACM253609

1шт.
