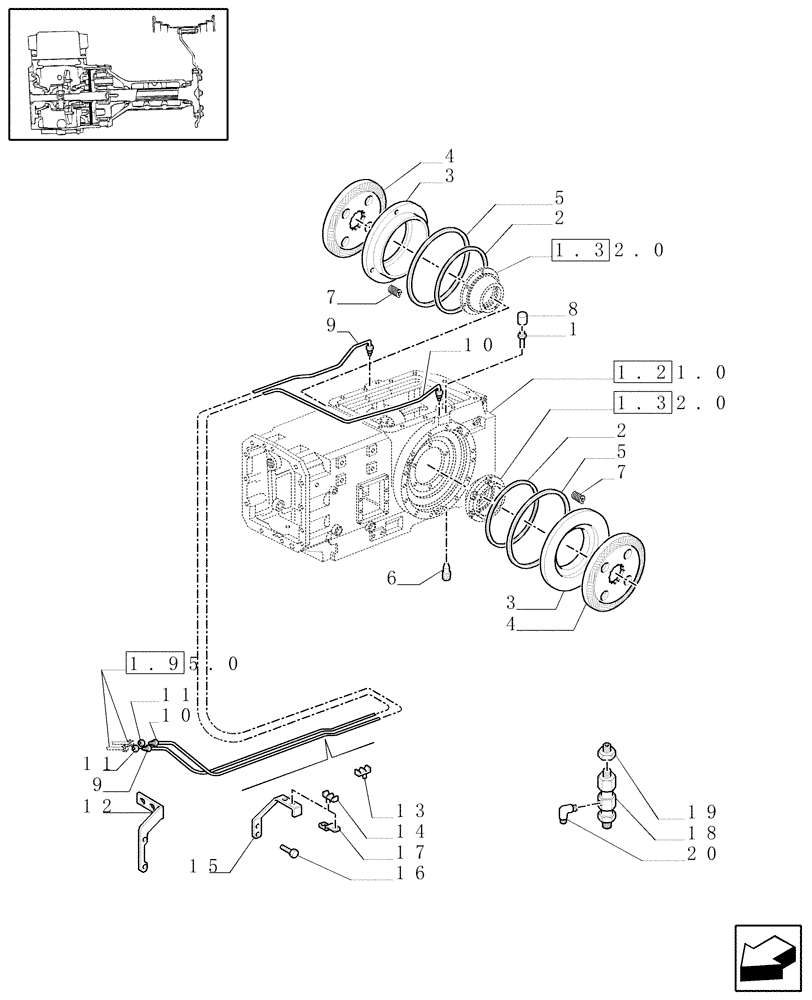

Запчасти Case IH MXM130 (1.65.3) - TRANSMISSION BRAKES (05) - REAR AXLE

1

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

M12 x 1.25

2шт.

2

5165511

SEAL,Square, 3.4mm Thk x 259.8mm ID, 80 Duro

SEALRING 259.6 x 266.4 x 3.4

2шт.

3

5152350

PRESSURE RING

2шт.

4

87525157

BRAKE DISC

Std version

2шт.

4

87516068

BRAKE DISC

2шт.

w/trailer brake and pneumatic trailer brake version

1шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

329.6 x 336.4 x 3.4

2шт.

6

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.

7

5120761

SPRING,7.7mm OD x 20.5mm L

6шт.

8

5171793

BOOT

, Serial Range: -C5965

2шт.

9

82019071

TUBE

For RH Brake

1шт.

9

87665810

BRAKE LINE

RH, Start Serial: D5906

1шт.

w/trailer brake and pneumatic trailer brake version

1шт.

10

82009308

BRAKE LINE

For LH Brake

1шт.

10

87665811

BRAKE LINE

LH, Start Serial: D5906

1шт.

w/trailer brake and pneumatic trailer brake version

1шт.

11

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

2шт.

12

82019066

BRACKET

1шт.

13

14575280

SPRING CLIP

1шт.

14

14575380

CLIP,4.8mm ID

3шт.

15

5155805

RETAINER COLLAR

1шт.

16

15853121

BOLT,Hex, M10 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

17

5155804

BRACKET

1шт.

18

87630704

VALVE POPPET

, Start Serial: D5906

2шт.

w/trailer brake and pneumatic trailer brake version

1шт.

19

47131549

FITTING,M12 x 1.5

, Start Serial: D5906

2шт.

w/trailer brake and pneumatic trailer brake version

1шт.

20

5185047

ELBOW,90 Deg, 9/16-18 ORFS x M10 x 1 ORB

, Start Serial: D5906

2шт.

w/trailer brake and pneumatic trailer brake version

1шт.
