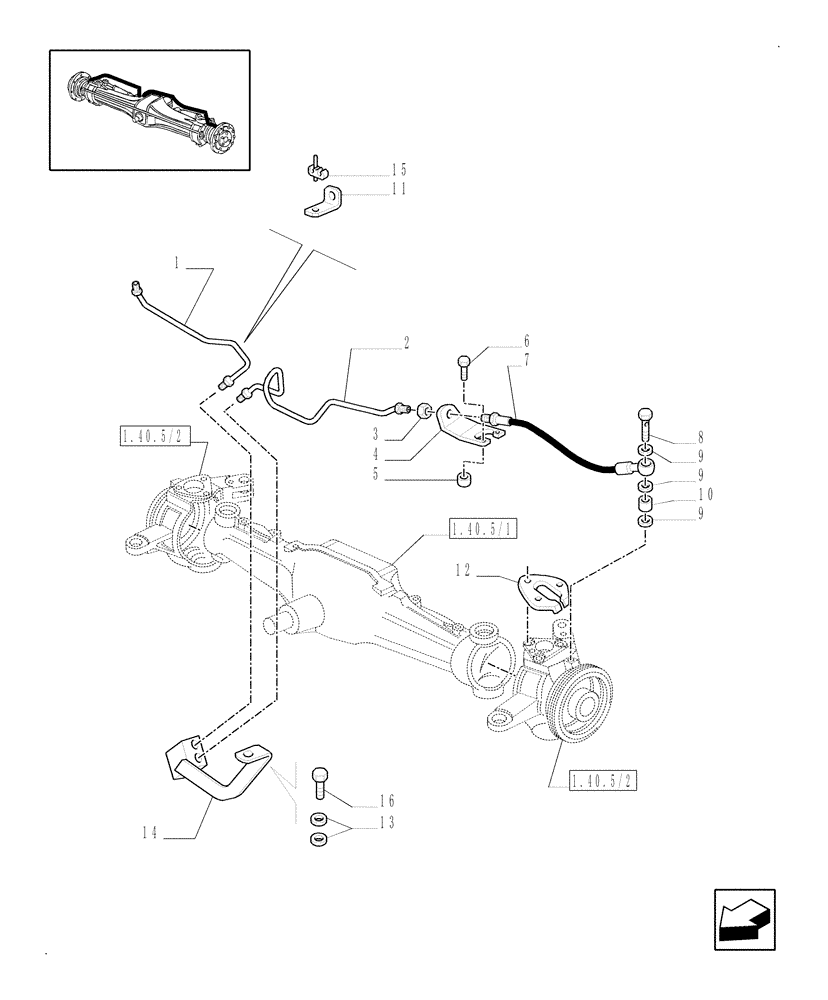

Запчасти Case IH MXM130 (1.40.5/13[03]) - (VAR.452/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, SPS - BRAKES (04) - FRONT AXLE & STEERING

1

5188458

TUBE

RH

1шт.

2

5188464

BRAKE LINE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

5182969

BRACKET

LH

1шт.

4

5182970

BRACKET

RH

1шт.

5

5184935

SPACER,13mm ID x 25mm OD x 20mm L

4шт.

6

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

7

5192945

HOSE,4.75 mm ID x 295.00 mm

2шт.

8

5184961

BANJO BOLT

M12 x 1.25 x 36

2шт.

9

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

6шт.

10

5184934

SPACER

2шт.

11

5179180

BRACKET

1шт.

12

5183735

PLATE

2шт.

13

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

14

5188505

BRACKET

1шт.

15

14575380

CLIP,4.8mm ID

1шт.

16

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

1шт.
