Запчасти Case IH MXM130 (1.21.2/02[01]) - (VAR.463) 4WD FRONT AXLE WITH SUSPENSIONS, FULL POWER SHIFT - VALVE AND PIPES (03) - TRANSMISSION

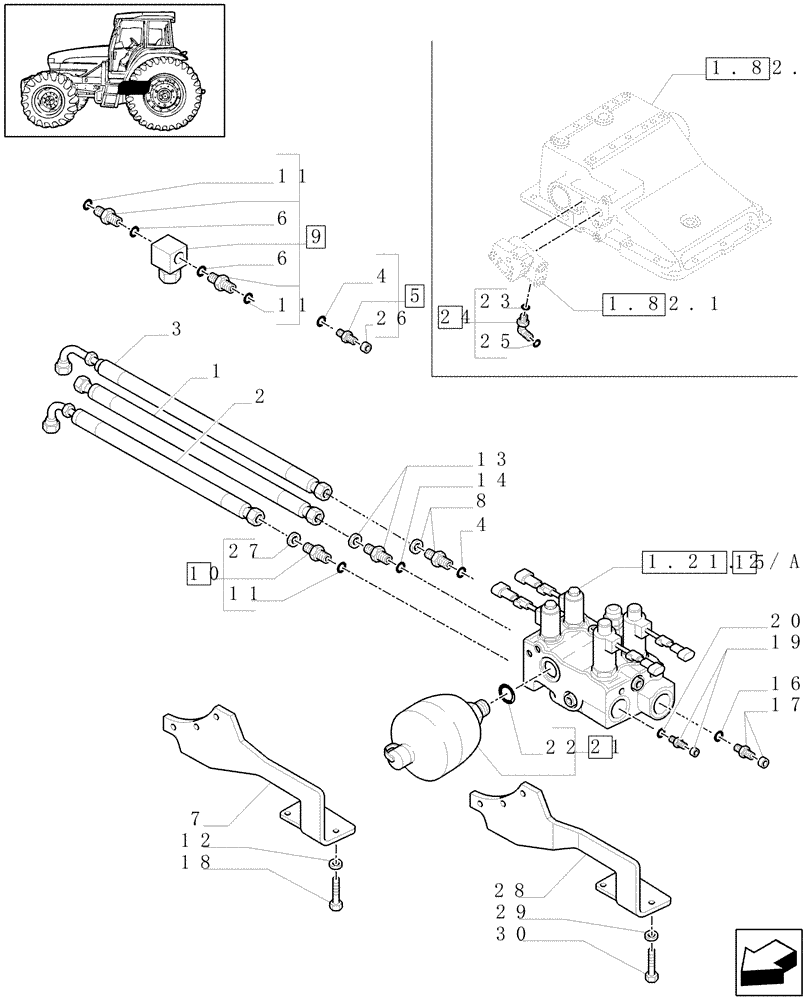

Схема запчастей Case IH MXM130 - (1.21.2/02[01]) - (VAR.463) 4WD FRONT AXLE WITH SUSPENSIONS, FULL POWER SHIFT - VALVE AND PIPES (03) - TRANSMISSION
19
4
28
11
7
26
22
1.21.2/a
11
3
24
1
17
2
21
16
4
29
13
9
30
6
27
5
20
11
23
12
1.82.0
1.82.1
8
15
10
14
6
25
18

Артикул

Название

Примечание

Количество

1

82019095

FLEXIBLE HOSE

Trailer Brake Main Pressure

1шт.

2

82019096

FLEXIBLE HOSE

Hydraulic Pump-Return, Serial Range: -ACM259775

1шт.

2

87312858

FLEXIBLE HOSE

Hydraulic Pump-Return, Start Serial: ACM259776

1шт.

3

82019094

FLEXIBLE HOSE

Hydraulic Pump-Load Sense, Serial Range: -ACM259775

1шт.

3

87312857

FLEXIBLE HOSE

Hydraulic Pump-Load Sense, Start Serial: ACM259776

1шт.

4

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

90 Duro, .489" ID x .070" Thk

2шт.

5

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

1шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

7

82030647

BRACKET

, Serial Range: -C5349

1шт.

8

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

13/16"-16 UN-2A/M16 x 1,5

1шт.

9

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

10

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18 UN-2A/M10 x 1

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

12

12605671

LOCK WASHER,Int Tooth, M10

, Serial Range: -C5349

3шт.

13

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

11/16"-16 UN-2A/M14 x 1.5

1шт.

14

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

1шт.

15

5197683

HYDRAULIC VALVE

Suspension Control, Serial Range: -ACM222663

1шт.

47135723R

REMAN-HYD VALVE

MXM130,MXM155,MXM120,MXM140 ALL SERIAL RANGE: -ACM222663 (6/02-), Reman For New P/N 5197683

1шт.

47135723C

CORE-VALVE HYD

Return Number

1шт.

15

47135723

HYDRAULIC VALVE

Suspension Control, Start Serial: ACM222664

1шт.

47135723R

REMAN-HYD VALVE

MXM155,MXM130,MXM140,MXM120 ALL START SERIAL: ACM222664 (6/02-)

1шт.

47135723C

CORE-VALVE HYD

Return Number

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

47125482

HYD CONNECTOR

1"-14 UN-2A/M27 x 2

1шт.

18

16054721

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

, Serial Range: -C5349

3шт.

19

82019639

HYD CONNECTOR

13/16"-12 UN-2A/M27 x 2

1шт.

20

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

90 Duro, .750" ID x .070" Thk

1шт.

21

82025705

ACCUMULATOR

1шт.

22

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

23

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

24

82015686

ELBOW,M16 x 1.5 x 37.5mm

1шт.

25

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

26

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

27

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

28

87532941

BRACKET

, Start Serial: D5349

1шт.

29

10615779

LOCK WASHER,Ext Tooth, M10

, Start Serial: D5349

3шт.

30

16054724

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

, Start Serial: D5349

3шт.

Выбрано товаров: 37
