Запчасти Case IH MXM120 (1.19.1[02]) - DRY AIR FILTER - PIPES (02) - ENGINE EQUIPMENT

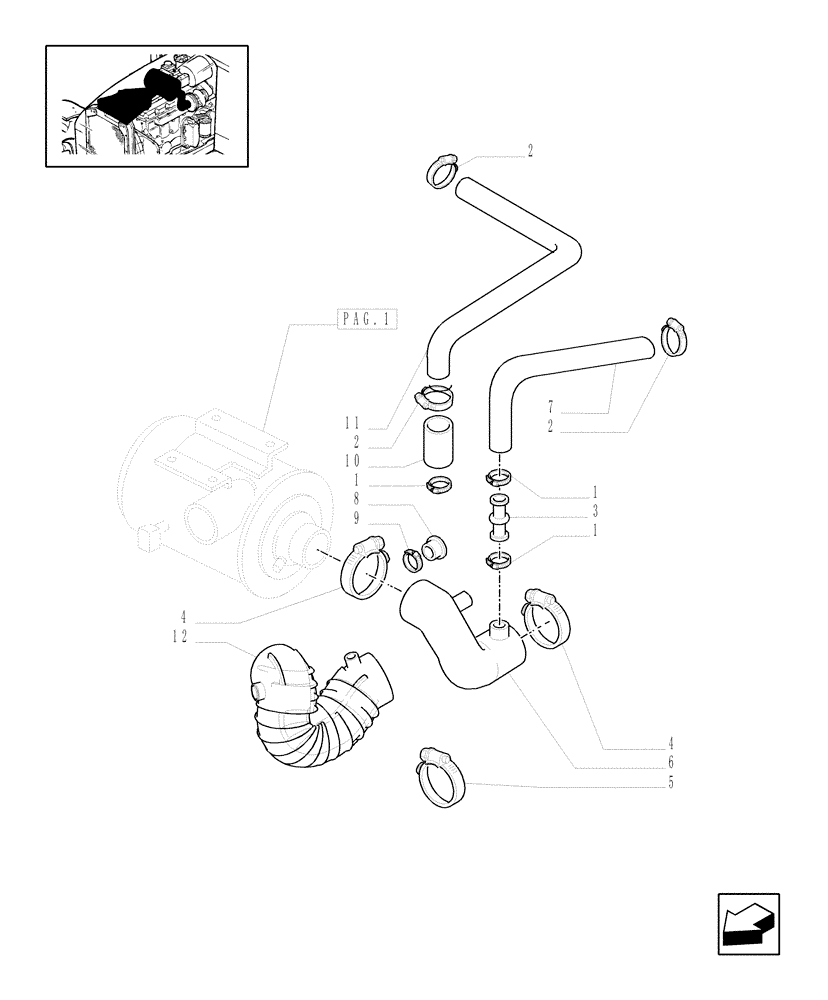

Схема запчастей Case IH MXM120 - (1.19.1[02]) - DRY AIR FILTER - PIPES (02) - ENGINE EQUIPMENT
3
1
1
12
2
8
10
11
5
4
9
6
2
4
2
pag.1
1
7

Артикул

Название

Примечание

Количество

1

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

2

82039345

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

3

82024812

FITTING

, Serial Range: -ACP204880

1шт.

4

82012733

COLLAR

2шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

6

82024745

TUBE

, Serial Range: -ACM2652754

1шт.

7

82024810

FLEXIBLE HOSE,19.00 mm ID x 440.00 mm, SAE 30R2 TYPE 2

, Serial Range: -ACP204880

1шт.

8

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

9

13387470

HOSE CLAMP,31mm - 34mm

1шт.

9

13387470

HOSE CLAMP,31mm - 34mm

, Serial Range: -ACM265274

1шт.

Only for VAR. 385

1шт.

9

13387570

HOSE CLAMP

Incl. 8, 9, Start Serial: ACM265275

1шт.

10

82033998

HOSE,19.00 mm ID x 50.00 mm, SAE 30R2 Type 2

, Start Serial: ACP204881

1шт.

11

82033997

TUBE

, Start Serial: ACP204881

1шт.

12

87365339

HOSE

Intake Air, Start Serial: ACM265275

1шт.

12

47978477

HOSE

Intake Air, Alternative Part Number, for Service only

1шт.

To be used only with the new Air Cleaner ASSY 47955145, for Service only

1шт.

Выбрано товаров: 17
