Запчасти Case IH MXM120 (1.17.2) - COOLING - EXPANSION TANK (02) - ENGINE EQUIPMENT

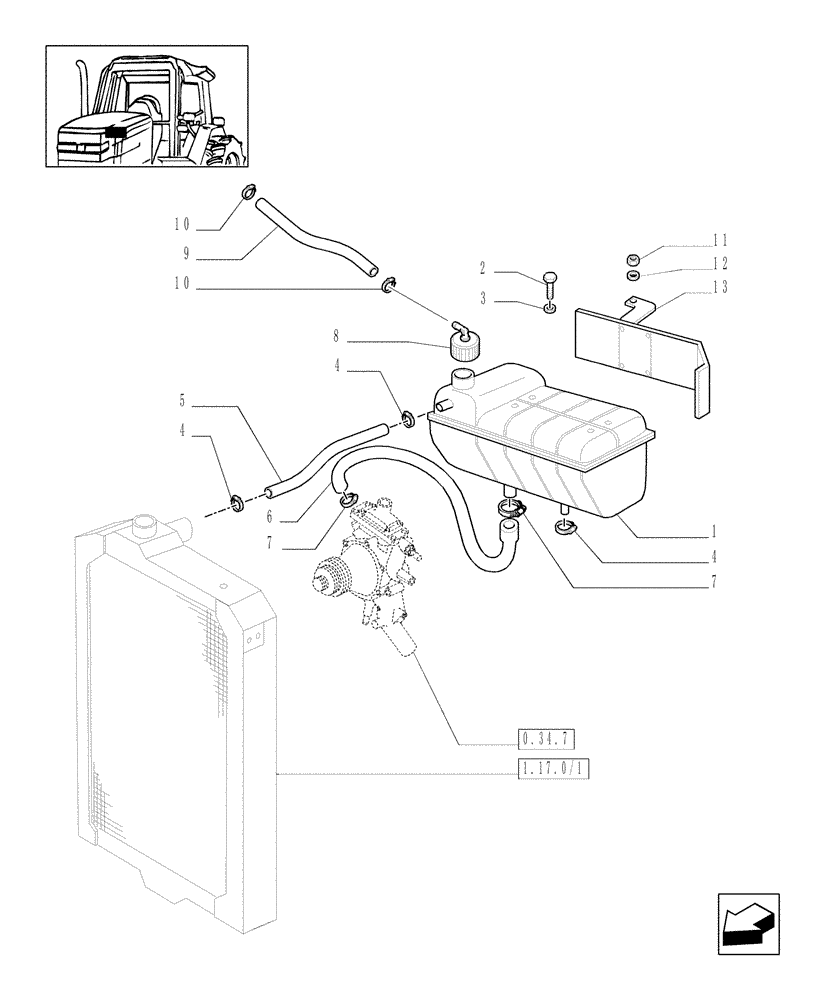

Схема запчастей Case IH MXM120 - (1.17.2) - COOLING - EXPANSION TANK (02) - ENGINE EQUIPMENT
1
3
10
1.17.0/1
0.34.7
6
11
13
5
7
8
12
4
7
2
10
9
4
4

Артикул

Название

Примечание

Количество

1

82019583

RESERVOIR, COOLANT E

1шт.

Components and Sensor, Float not serviced separately

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

3

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

4

82039342

COLLAR

2шт.

5

82019590

FLEXIBLE HOSE,9.00 mm ID x 545.00 mm, SAE J20R4 Class C

1шт.

6

82023371

FLEXIBLE HOSE,19.50 mm ID x 526.00 mm, SAE J20R4 CLASS C

1шт.

7

82039345

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

8

82022744

CAP,Female, Vented, Non-Locking

1шт.

9

82031702

TUBE,7.62mm ID X 1295mm

1шт.

10

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

12

89824259

WASHER

M6

1шт.

13

82018184

SHIELD

1шт.

Выбрано товаров: 14
