Запчасти Case IH MXM120 (1.17.0/86[01]) - PIPES FOR AIR CONDITIONING (02) - ENGINE EQUIPMENT

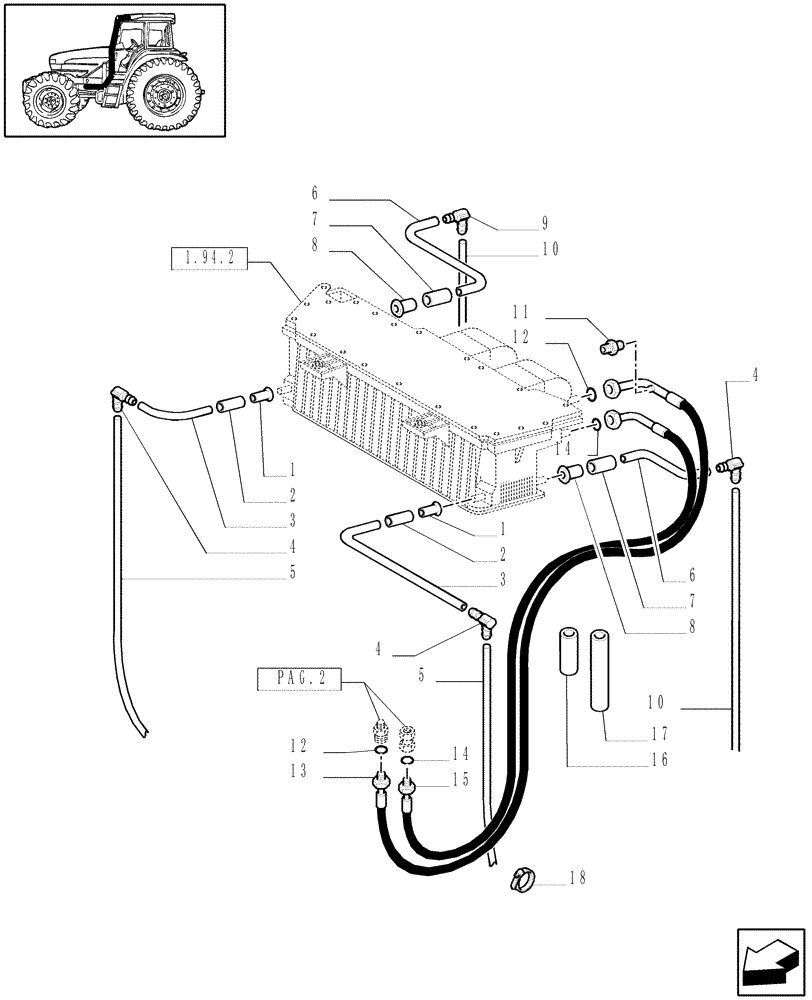

Схема запчастей Case IH MXM120 - (1.17.0/86[01]) - PIPES FOR AIR CONDITIONING (02) - ENGINE EQUIPMENT
4
3
2
2
1
8
9
g.2
10
12
4
15
13
1
14
5
1.94.2
18
p
12
8
a
7
4
10
3
16
5
6
14
6
7
11
17

Артикул

Название

Примечание

Количество

1

89832278

RIVET

2шт.

2

83994832

FITTING

2шт.

3

83994816

A/C HOSE,6.00 mm ID x 255.00 mm

1шт.

4

83994810

ELBOW

1шт.

5

82011448

FLEXIBLE HOSE,6.00 mm ID x 1685.00 mm

A/C Evaporator Drain

1шт.

6

83994825

TUBE,10.00 mm ID x 543.00 mm

1шт.

7

83994831

FITTING

2шт.

8

89832204

RIVET

2шт.

9

83994807

ELBOW

1шт.

10

83994822

A/C HOSE,829.00 mm

1шт.

11

87356362

SWITCH ASSY

A/C Clutch Cylinder

1шт.

12

82000791

O-RING,1.78mm Thk x 14mm ID, 70 Duro

.551" ID x .070" Thk

2шт.

13

82014296

FLEXIBLE HOSE,16 mm OD, 91.3, 59.2 mm Length

MXM120, MXM130, MXM140, MXM155, Serial Range: -ACM269617

1шт.

13

87389799

FLEXIBLE HOSE

MXM120, MXM130, MXM140, MXM155, Start Serial: ACM269618

1шт.

13

82019421

FLEXIBLE HOSE

MXM175, MXM190, Serial Range: -ACM269617

1шт.

13

87382992

FLEXIBLE HOSE

MXM175, MXM190, Start Serial: ACM269618

1шт.

14

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk, Green

2шт.

15

82019400

FLEXIBLE HOSE

MXM120, MXM130, MXM140, MXM155, Serial Range: -ACM269617

1шт.

15

87382948

FLEXIBLE HOSE

MXM120, MXM130, MXM140, MXM155, Start Serial: ACM269618

1шт.

15

82019420

FLEXIBLE HOSE

MXM175, MXM190, Serial Range: -ACM269617

1шт.

15

87389808

FLEXIBLE HOSE

MXM175, MXM190, Start Serial: ACM269618

1шт.

16

81871638

FOAM INSULATION

1шт.

17

82002607

FOAM INSULATION

1шт.

18

5112712

COLLAR,M4.8 x 283

1шт.

Выбрано товаров: 24
