(83.00[04]) - DRIVE WHEELS

Запчасти Case IH MXM120 (83.00[04]) - DRIVE WHEELS (11) - WHEELS/TRACKS

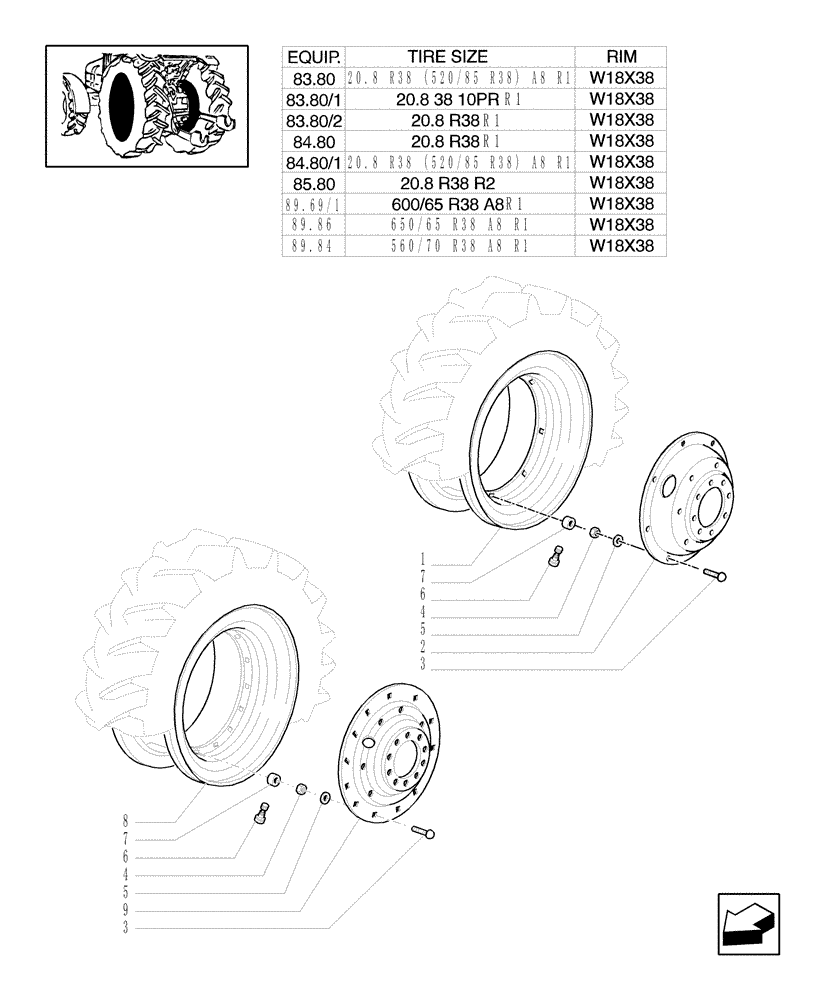

Схема запчастей Case IH MXM120 - (83.00[04]) - DRIVE WHEELS (11) - WHEELS/TRACKS
20.8 r38 (520/85 r38) a8 r1
r1
3
650/65 r38 a8 r1
6
89.86
89.84
20.8 r38 (520/85 r38) a8 r1
7
2
6
560/70 r38 a8 r1
r1
3
4
5
r1
8
1
7
5
89.69/1
9
r1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82031159

RIM

W18 x 38

2шт.

2

82031195

WHEEL DISC,787.4mm D, 8 Bolts, Case Silver

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

16шт.

4

12164121

NUT,M16 x 1.5, Cl 10

16шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

8шт.

8

82031181

RIM

18 x 38

2шт.

For MXM175, MXM190 W/Equip. 89.84, 89.86

1шт.

9

82031205

WHEEL DISC,807.5mm Dia, 16 Bolts, CASE Silver

2шт.

For MXM175, MXM190 W/Equip. 89.84, 89.86

1шт.
