(82.00[22]) - 4WD DRIVING WHEELS

Запчасти Case IH MXM120 (82.00[22]) - 4WD DRIVING WHEELS (11) - WHEELS/TRACKS

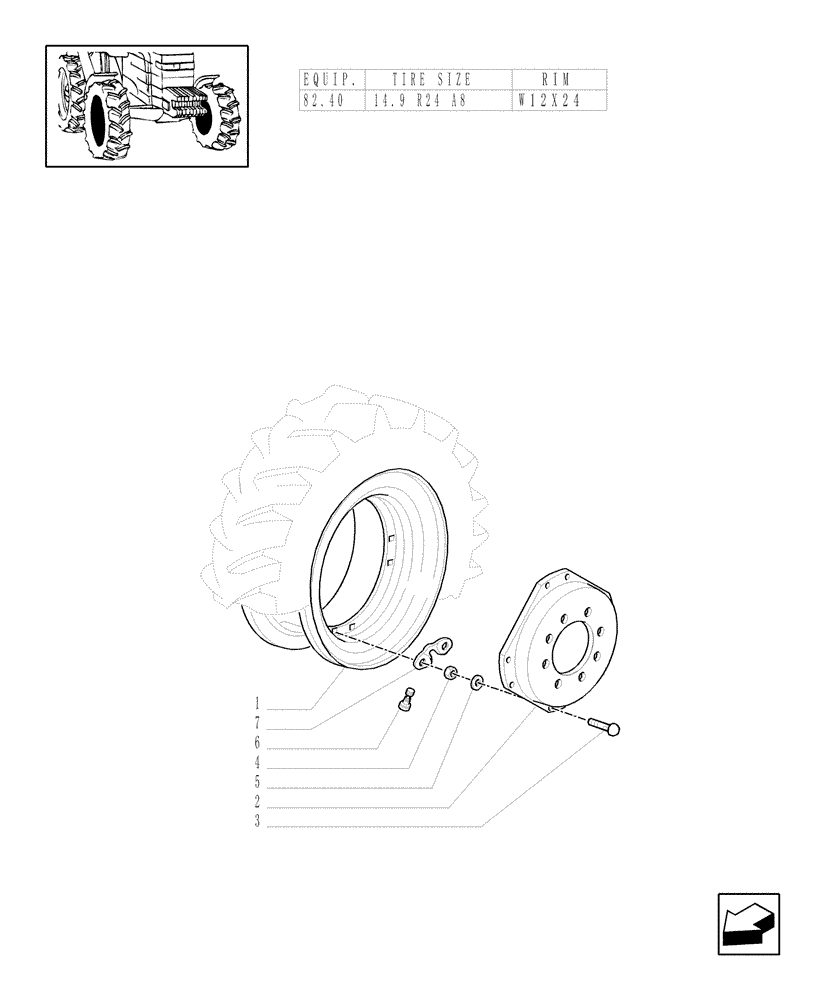

Схема запчастей Case IH MXM120 - (82.00[22]) - 4WD DRIVING WHEELS (11) - WHEELS/TRACKS
7
2
3
w12x24
14.9 r24 a8
6
82.40
rim
1
5
4
tire size
equip.
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82031111

RIM,W12X24, 8 Bolts, CASE Silver

W12 x 24

2шт.

2

82031101

WHEEL DISC,504.6mm Dia, 8 Bolts, CASE Silver

24"

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

16шт.

4

12164124

NUT,M16 x 1.5, Cl 8

16шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

16шт.

6

85700224

VALVE STEM

2шт.

7

82022302

SPACER

8шт.

Выбрано товаров: 7
