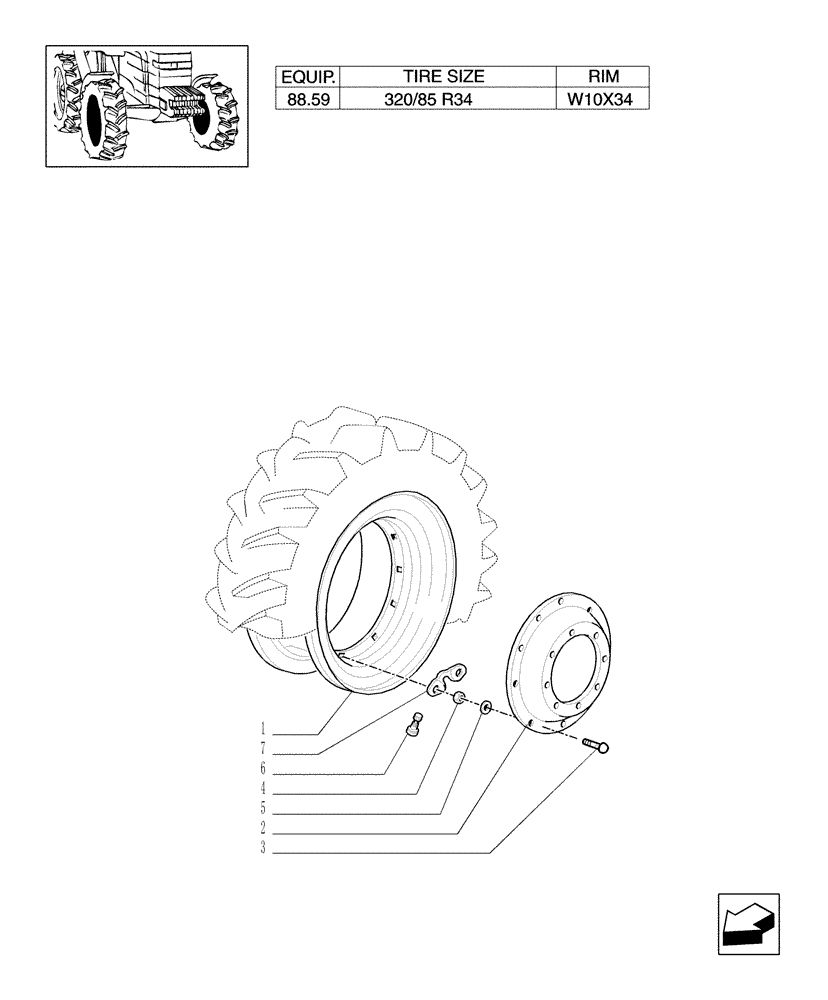

Запчасти Case IH MXM120 (82.00[21]) - 4WD DRIVING WHEELS (11) - WHEELS/TRACKS

1

82037254

RIM,DW10X34, 254mm W, 8 Bolts, Case Silver

W10 x 34

2шт.

2

82037257

WHEEL DISC,685.8mm Dia (330mm Dia), 12 Bolts, CASE Silver

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

24шт.

4

12164121

NUT,M16 x 1.5, Cl 10

24шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

24шт.

6

85700224

VALVE STEM

2шт.

7

82022302

SPACER

24/28

24шт.
