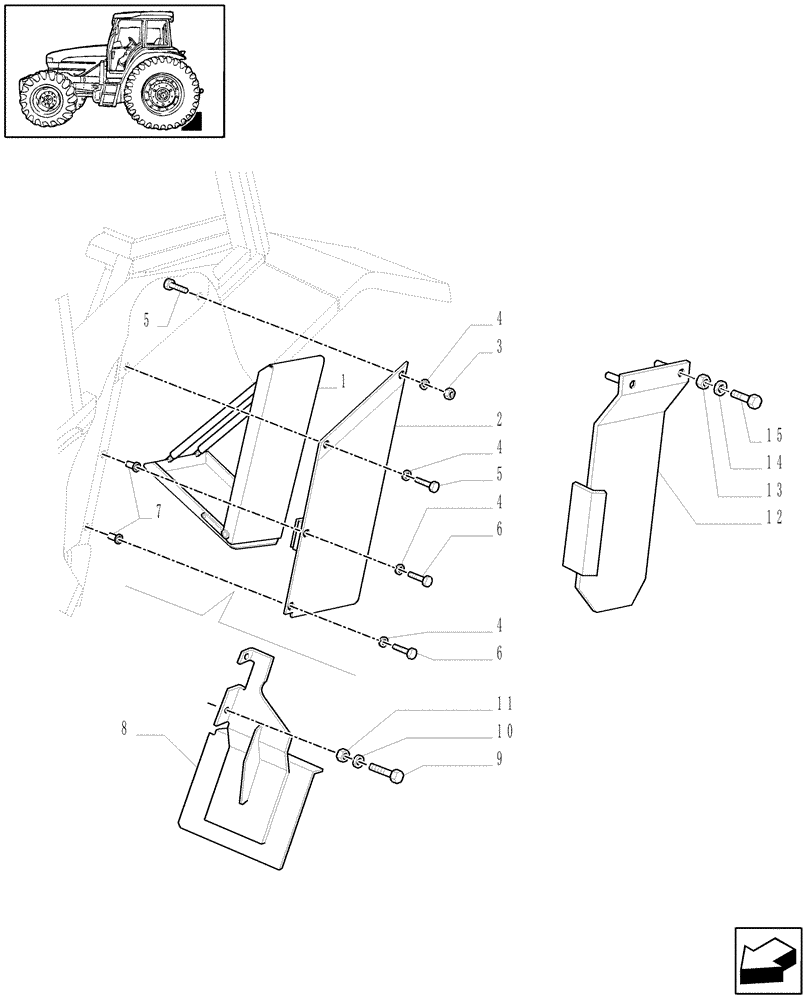

Запчасти Case IH MXM120 (1.99.1) - (VAR.863) DOUBLE CHOCK (10) - OPERATORS PLATFORM/CAB

1

5112736

WHEEL CHOCK

2шт.

2

82016177

SUPPORT

LH, Serial Range: -C5340

1шт.

2

82016179

SUPPORT

RH, Serial Range: -C5340

1шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

, Serial Range: -C5340

1шт.

4

10523404

WASHER,6.15mm ID x 18mm OD x 2mm Thk

, Serial Range: -C5340

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

6

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

, Serial Range: -C5340

1шт.

7

81869659

THREADED INSERT

M6

4шт.

8

87373331

SUPPORT

LH

1шт.

W/Cab, W/Suspension

1шт.

8

87373323

SUPPORT

RH

1шт.

W/Cab, W/Suspension

1шт.

9

11106424

SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd

4шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

11

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

12

87371507

SUPPORT

LH, Start Serial: D5340

1шт.

12

87371512

SUPPORT

RH, Start Serial: D5340

1шт.

13

12577411

NUT,M16 x 2, Cl 8

, Start Serial: D5340

2шт.

14

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

, Start Serial: D5340

2шт.

15

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

M16 x 120, Start Serial: D5340

2шт.
