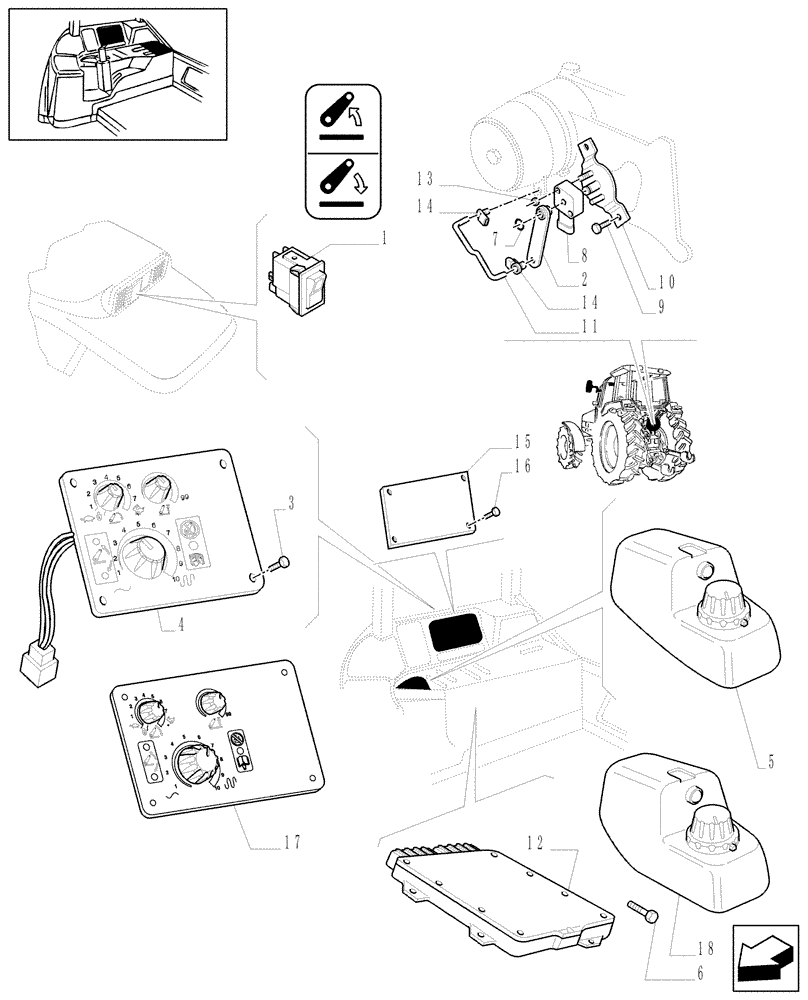

Запчасти Case IH MXM120 (1.97.0[01]) - ELECTRONIC UNIT CONTROL (10) - OPERATORS PLATFORM/CAB

1

82032524

SWITCH ASSY

External EDC, Serial Range: -C5064

2шт.

1

87452577

SWITCH

Remote Hitch, UP/Down, Start Serial: D5064

2шт.

2

81864634

LEVER

2шт.

3

15691301

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 13mm

4шт.

4

82026306

PANEL

, Serial Range: -C5321

1шт.

5

82026135

ECU

EDC, Serial Range: -C5321

1шт.

6

82016959

SCREW,M3.5 x 12mm

M3.5 x 12

4шт.

7

83981963

SNAP RING,M8 x 0.66mm Thk

1шт.

8

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

9

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

10

87570983

BRACKET

1шт.

11

82014120

ROD

1шт.

12

82033611

ECU

EDC and Suspended Front Axle

1шт.

13

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

14

89821714

CLIP

2шт.

15

81869733

PANEL

MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

16

15691301

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 13mm

4шт.

W/Mec. Trans. 20 x 16

1шт.

17

87397178

PANEL

EDC L/Slip L/Diverter Valve, Serial Range: D5321-C5425

1шт.

17

87530852

PANEL

EDC L/Slip L/Diverter Valve, Start Serial: D5425

1шт.

18

87397173

CONSOLE

, Start Serial: D5321

1шт.
