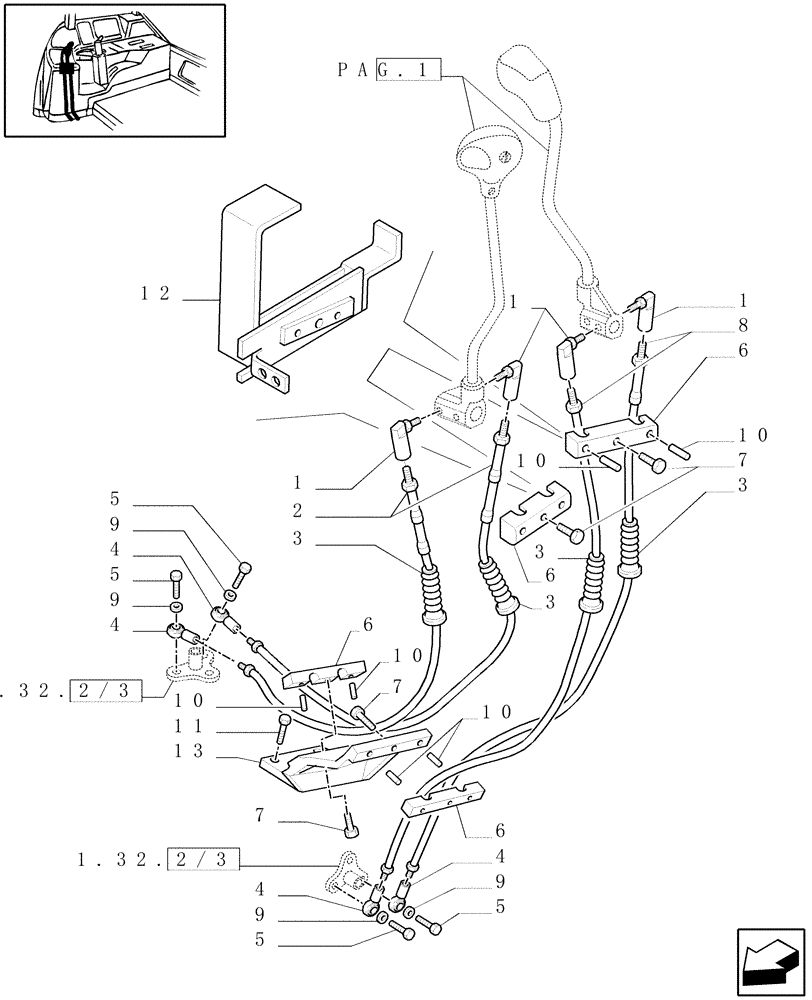

Запчасти Case IH MXM120 (1.96.0/02[02]) - (VAR.272) HI-LO 24X12 (SHUTTLE 40 KM/H) / GEARBOX CONTROL (10) - OPERATORS PLATFORM/CAB

1

82001943

BALL JOINT

4шт.

2

82006919

CABLE

Incl. 3

2шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

4шт.

4

82007661

BALL JOINT,M8 x 1.25 x 48mm

4шт.

5

5173097

BANJO BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

6

5167546

CLAMP

Incl. 10

4шт.

7

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

4шт.

8

82006920

CABLE

Incl. 3

2шт.

9

10569374

LOCK WASHER,M8

4шт.

10

10337710

PIN

8шт.

11

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

12

82016480

BRACKET

1шт.

13

5167501

SUPPORT

1шт.
