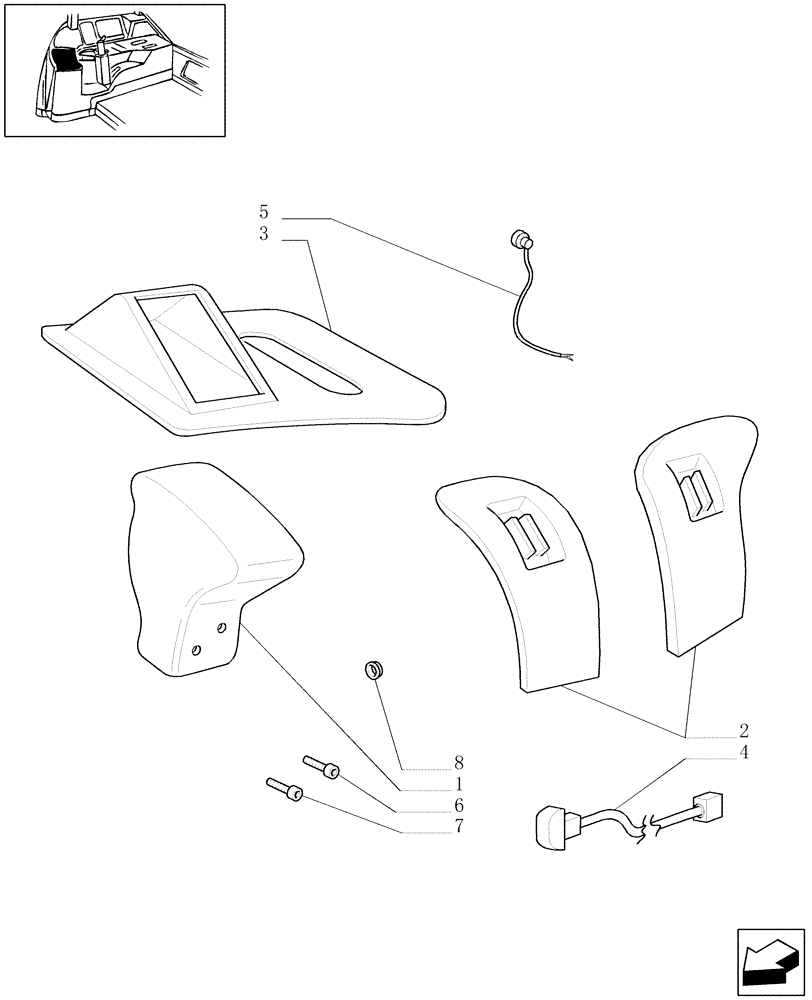

Запчасти Case IH MXM120 (1.96.0[01]) - GEARBOX CONTROL (10) - OPERATORS PLATFORM/CAB

1

388705A1

GRIP

Throttle

1шт.

1

293388A2

GRIP

Throttle

1шт.

W/Full Power Shift trans. 18 x 6 (40 KPH-4WD) and 17 x 6 (30 KPH-2WD) Equip. 281

1шт.

2

316000A2

GRIP

Handle

1шт.

3

82034416

COVER

Switch, Serial Range: -C5088

1шт.

3

87309878

COVER

Switch, Start Serial: D5088

1шт.

4

82030904

SWITCH ASSY

Up/Down

1шт.

5

82029181

SWITCH ASSY

Up/Down

1шт.

6

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

2шт.

7

368048A1

SCREW,Prev Torque, M4 x 12mm, Cl 8.8, Full Thd

M4 x 12

4шт.

8

81862738

PLUG,M38 x 28 x 5mm

28MM

7шт.
