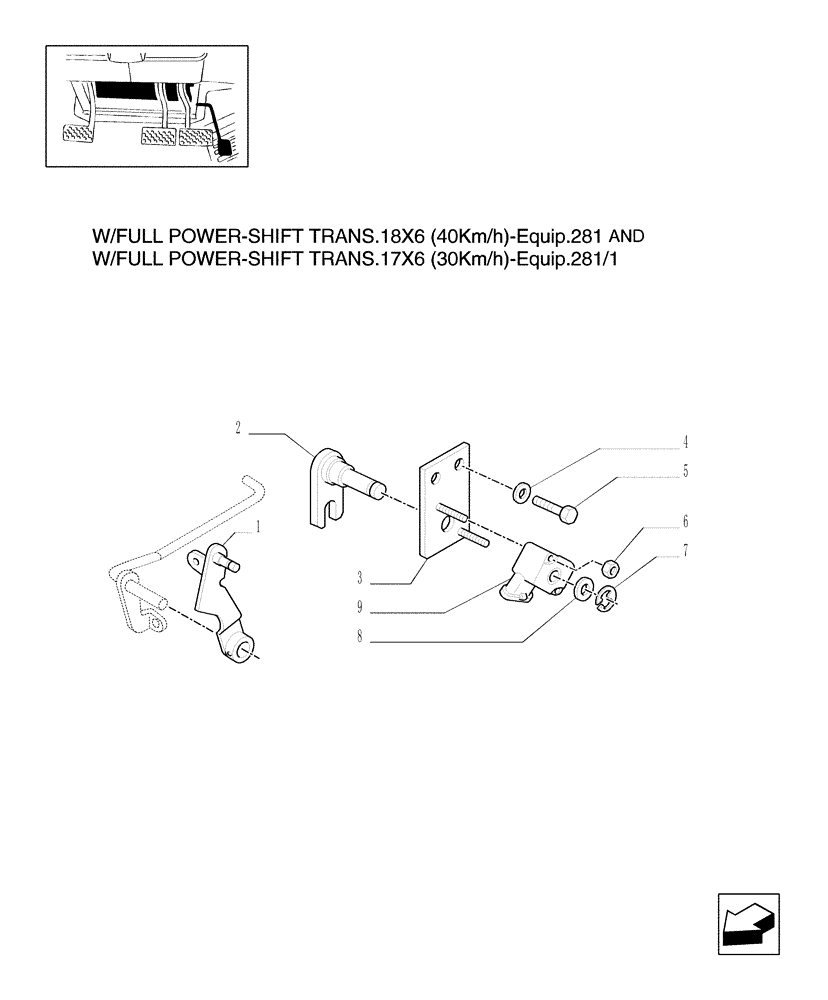

Запчасти Case IH MXM120 (1.95.4/02) - (VAR.281) ACCELERATOR CONTROL LINKAGE (10) - OPERATORS PLATFORM/CAB

1

82030857

LEVER

1шт.

2

82018106

ARM

1шт.

3

82030855

BRACKET

1шт.

4

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

6

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

7

11087871

CIRCLIP,M7

1шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

9

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Serial Range: -C5735

1шт.

9

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D5735

1шт.
