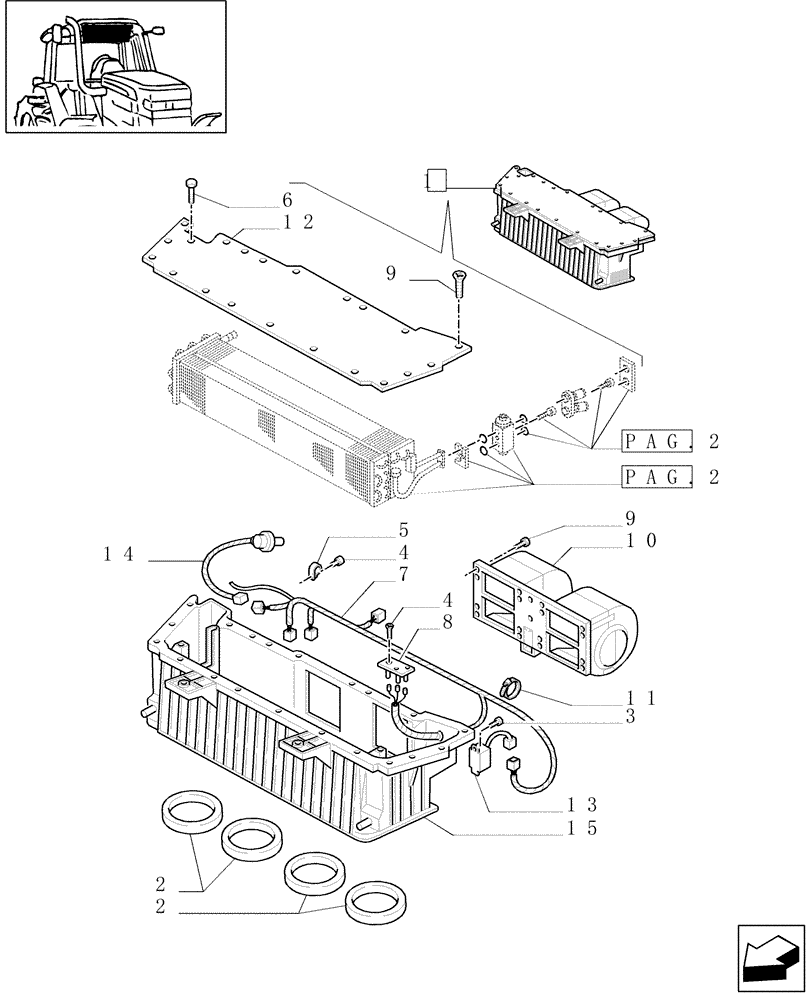

Запчасти Case IH MXM120 (1.94.2/ A[01]) - AIR CONDITIONING BREAKDOWN - C4995 (10) - OPERATORS PLATFORM/CAB

1

82024427

AIR CONDITIONER

, Serial Range: -C4994

1шт.

1

82027127

AIR CONDITIONER

, Start Serial: D4994

1шт.

2

81865554

SEAL,125mm ID x 165mm OD x 10mm Thk

4шт.

3

82000559

SCREW

2шт.

4

82000560

SCREW,Pan, M3.18 x 8mm

4шт.

5

82000564

CLIP

3шт.

6

82866253

SCREW,Phillips Drive, Pan HD, M6 x 9.65mm, SST

5шт.

7

82024425

WIRE HARNESS

1шт.

8

81870363

RESISTOR

1шт.

9

82001934

SCREW,Pan, M4.72 x 14.75mm, Mild Steel

23шт.

10

81870361

BLOWER

1шт.

81870361C

CORE-DISTRIBUTOR

Return Number, BLOWER - for N.A. Only

1шт.

10

82034854R

REMAN-DISTRIBUTOR

Reman for New PN 81870361

1шт.

10

82034854C

CORE-DISTRIBUTOR

Return Number

1шт.

11

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

16шт.

12

82000581

COVER

1шт.

13

81865558

THERMOSTAT

, Serial Range: -C4994

1шт.

13

82024945

THERMOSTAT

, Start Serial: D4994

1шт.

14

82024042

SWITCH ASSY

A/C Control, Serial Range: -C4994

1шт.

14

82027128

POTENTIOMETER,A/C

A/C Control, Start Serial: D4994

1шт.

15

82000550

HOUSING

1шт.
