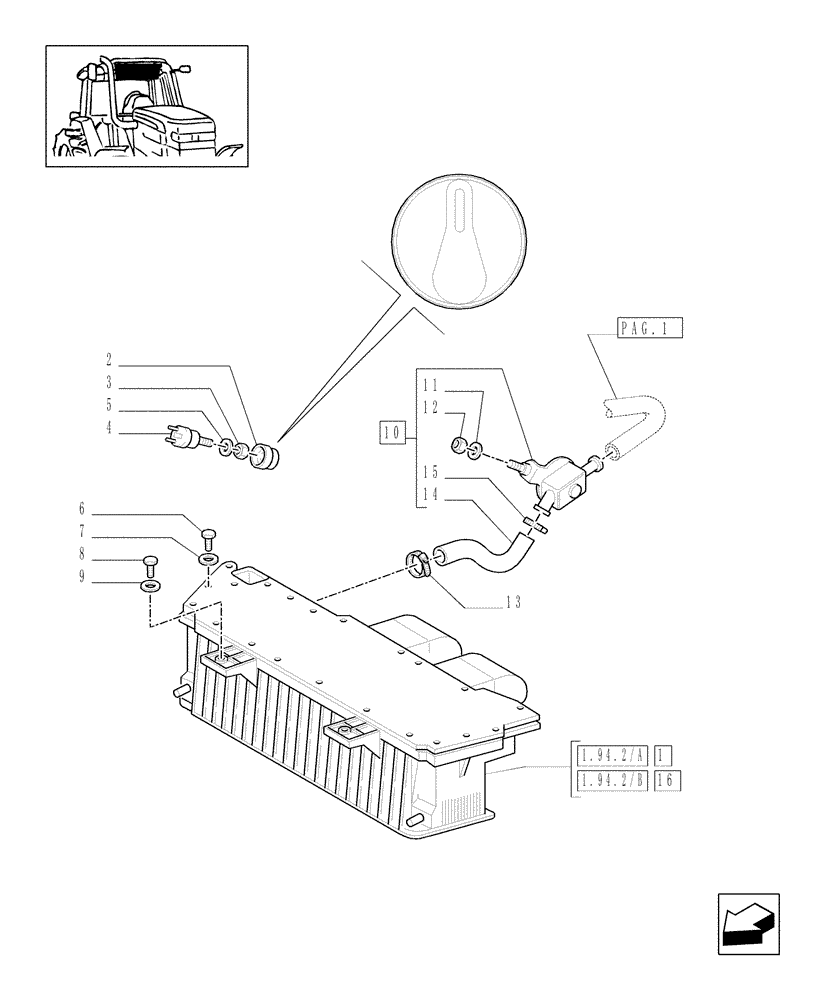

Запчасти Case IH MXM120 (1.94.2[02]) - HEATER & AIR CONDITIONER (10) - OPERATORS PLATFORM/CAB

1

82024427

AIR CONDITIONER

& Heater, Serial Range: -C4994

1шт.

1

82027127

AIR CONDITIONER

& Heater, Serial Range: D4994-ACM210477

1шт.

2

81867238

KNOB

2шт.

3

80274562

NUT

1шт.

4

83907434

SWITCH ASSY

Heater Blower

1шт.

5

89715503

LOCK WASHER

Ext T, 7/16"

1шт.

6

10903221

SCREW,Hex, M6 x 40mm, Cl 8.8

2шт.

7

12035670

LOCK WASHER

M6

4шт.

8

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

9

17094714

LOCK WASHER,M6 x 13

2шт.

10

82020530

CONTROL VALVE

, Serial Range: -ACM280643

1шт.

10

87380762

REGULATOR

, Start Serial: ACM280644

1шт.

11

83925303

LOCK WASHER,12.5mm ID x 20.5mm OD x 1mm Thk

, Serial Range: -ACM280643

1шт.

12

81868671

NUT

, Serial Range: -ACM280643

1шт.

13

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

14

82014536

HEATER HOSE,15.25 mm ID

1шт.

15

82019905

HOSE CLAMP,22 - 26mm X 12mm

1шт.

16

82034850

AIR CONDITIONER

& HEATER, Start Serial: ACM210478

1шт.
