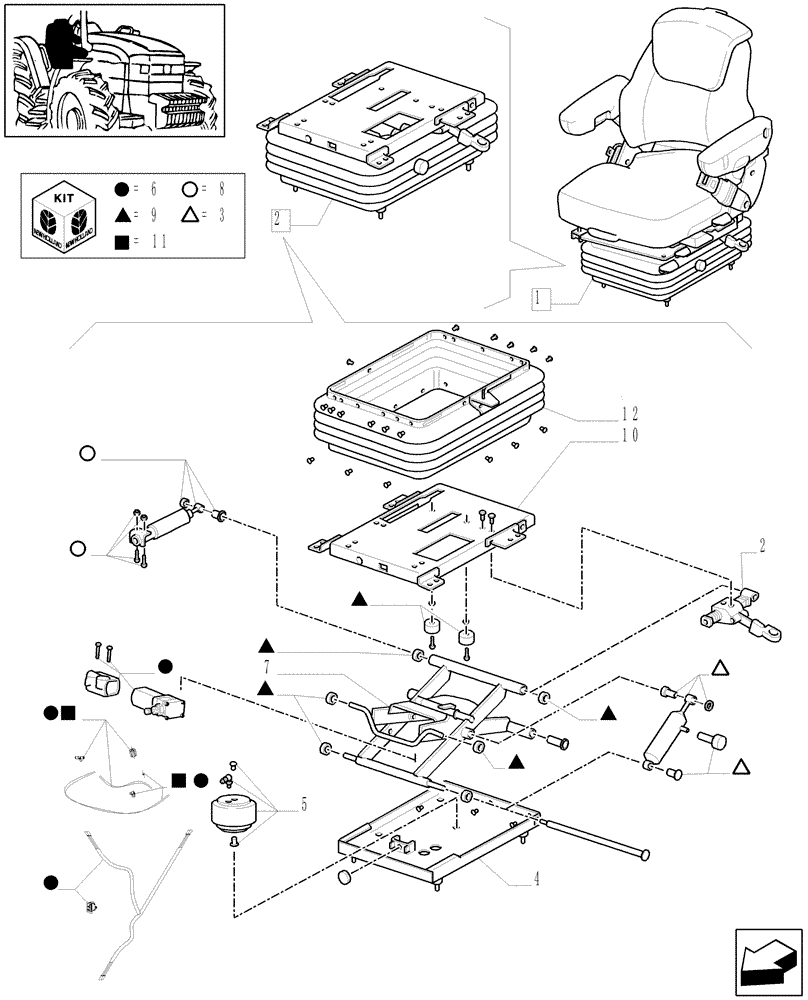

Запчасти Case IH MXM120 (1.93.3/ G[03]) - (VAR.964) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

87363496

DRIVER SEAT

Assy

1шт.

1

82039689

SUSPENSION

Assy

1шт.

2

82021020

SERVICE KIT

Fore/Aft Isolator

1шт.

3

82020847

KIT

Suspension Shock Absorber

1шт.

4

82020821

KIT

Lower Housing

1шт.

5

82020819

KIT

Air Spring

1шт.

6

87367817

KIT

Compressor W/Heating

1шт.

7

82020846

KIT

Suspension Scissors

1шт.

8

82020830

SERVICE KIT

Suspension Fore/Aft Damper

1шт.

9

82020845

SERVICE KIT

Bumper and Roller

1шт.

10

82020844

KIT

Upper Housing

1шт.

11

87352578

SERVICE KIT

Air Line

1шт.

12

82020843

KIT

Suspension Boot

1шт.

87347976

SERVICE KIT

Suspension Boot Clips

1шт.
