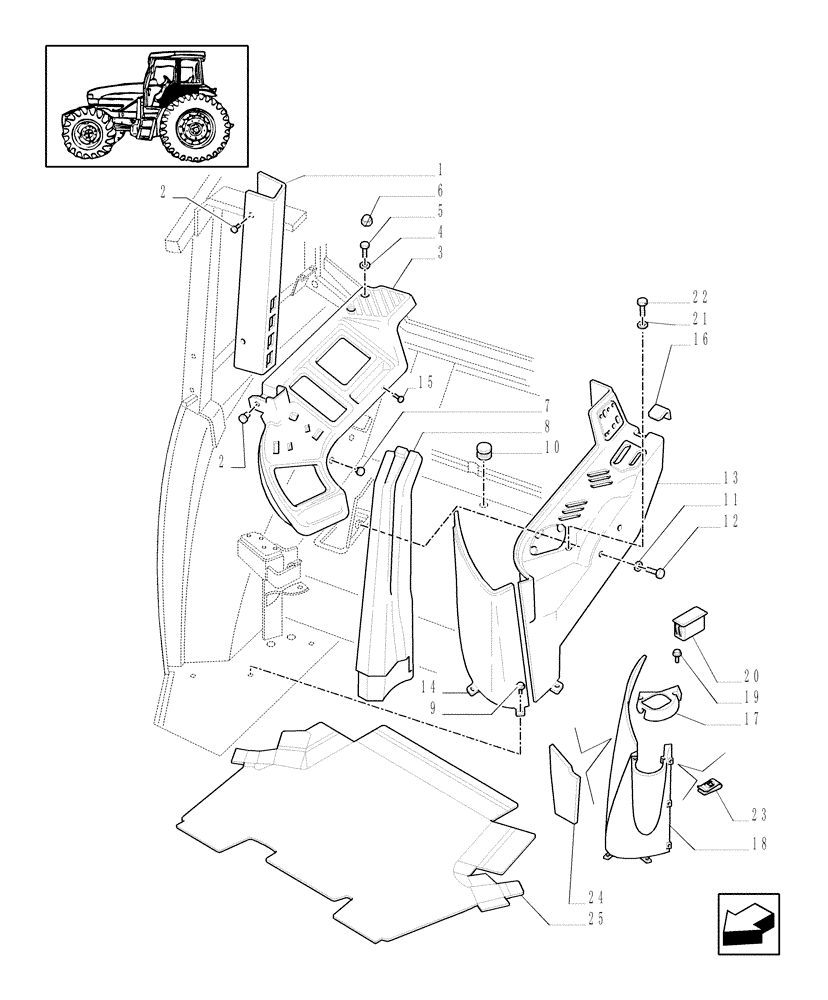

Запчасти Case IH MXM120 (1.93.0[01]) - CONTROLS COVER (10) - OPERATORS PLATFORM/CAB

1

82023458

SOFT TRIM

RH

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

5шт.

3

82027665

CONSOLE

RH, Serial Range: -ACM237800

1шт.

3

82038962

CONSOLE

, Start Serial: ACM237801

1шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

5

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

6

82012814

CAP,M10

4шт.

7

81873232

PLUG

2шт.

8

82023446

PANEL

RH, Serial Range: -ACM237800

1шт.

8

82038708

PANEL

, Start Serial: ACM237801

1шт.

9

82023989

CAPTIVE WASHER SCREW,Cross Pan Hd, #8 - 18 x 0.75", Type AB Thd Forming Pt

3шт.

10

83904456

GROMMET

5шт.

11

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

4шт.

12

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

13

82027660

CONSOLE

RH

1шт.

13

82027661

CONSOLE

MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

14

82027667

PANEL

RH, Serial Range: -C5073

1шт.

14

87301795

PANEL

RH, Start Serial: D5073

1шт.

15

15909401

SELF-TAP SCREW,Cross Oval Hd, M3.5 x 19

6шт.

16

82007725

PLUG

MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

17

82033870

SOFT TRIM

1шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, 723, Joystick for Loader

1шт.

18

82033872

SOFT TRIM

Incl. 23, Serial Range: -C5073

1шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, 723, Joystick for Loader

1шт.

18

87301791

PANEL

Incl. 23, 24, Start Serial: D5073

1шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, 723, Joystick for Loader

1шт.

19

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

3шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, 723, Joystick for Loader

1шт.

20

82022763

PLUG

Blanking

1шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, 723, Joystick for Loader

1шт.

21

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

22

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

2шт.

23

14372171

SPRING NUT,A Style, 3.5mm ID x 16.5mm L x 0.5mm Thk

1шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, 723, Joystick for Loader

1шт.

24

82019598

FOAM INSULATION

, Start Serial: D5073

1шт.

W/Equip. 244, 245/1, 440, 440/2, 444, 714/1, 723, Joystick for Loader

1шт.

25

87313046

MAT

1шт.
