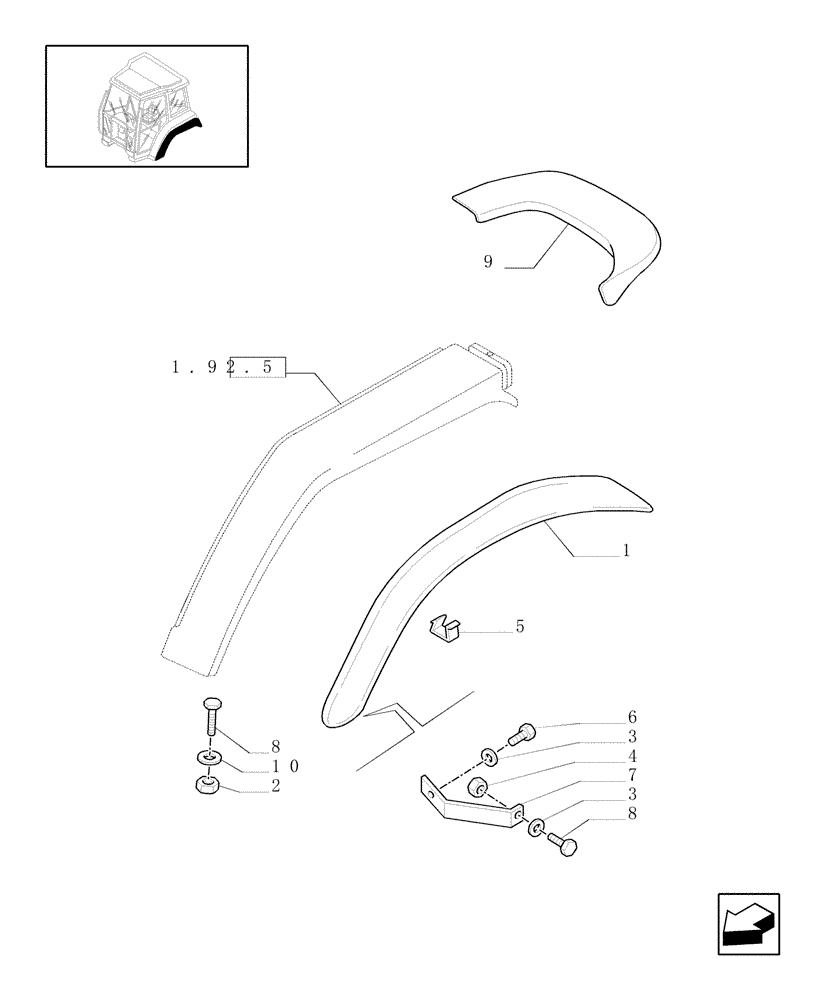

Запчасти Case IH MXM120 (1.92.5/01[01]) - (VAR. 869) MUDGUARDS SIDE SHIELD (10) - OPERATORS PLATFORM/CAB

1

82024492

FENDER EXTENSION

RH

1шт.

1

82024493

FENDER EXTENSION

LH

1шт.

2

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

3

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

5

82010838

SPRING CLIP,0.5mm Thk

38шт.

6

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

7

82008692

BRACKET

RH

1шт.

7

82008693

BRACKET

LH

1шт.

8

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

9

82024498

FENDER EXTENSION

Rear, RH

1шт.

9

82024499

FENDER EXTENSION

Rear, LH

1шт.

10

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.
