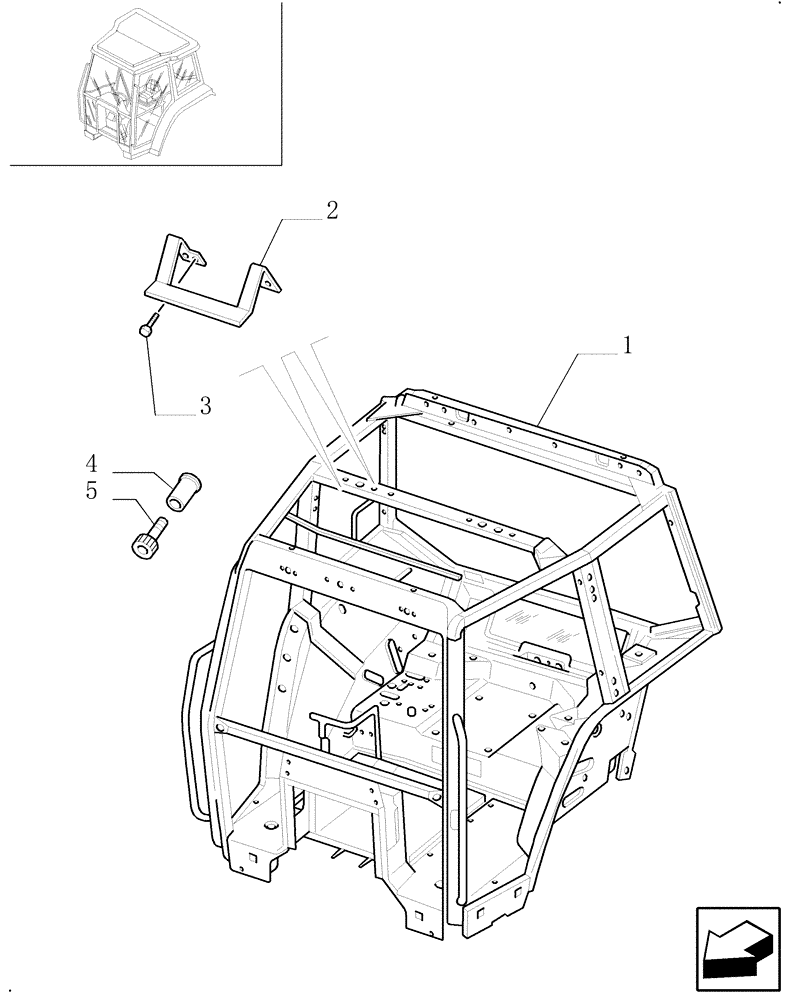

Запчасти Case IH MXM120 (1.92.1) - CAB FRAME (10) - OPERATORS PLATFORM/CAB

1

87302916

CAB FRAME

MXM120, MXM130, MXM140, MXM155, Serial Range: -ACM263457

1шт.

1

87350751

CAB FRAME

MXM120, MXM130, MXM140, MXM155, Serial Range: ACM263458-ACM267842

1шт.

1

87302914

CAB FRAME

MXM175, MXM190, Serial Range: -ACM263457

1шт.

1

87350745

CAB FRAME

MXM175, MXM190, Serial Range: ACM263458-ACM267842

1шт.

1

87341127

CAB FRAME

MXM120, MXM130, MXM140, MXM155, Start Serial: ACM267843

1шт.

1

87341093

CAB FRAME

MXM175, MXM190, Start Serial: ACM267843

1шт.

2

82013926

SUPPORT

MXM175, MXM190

1шт.

3

13274411

SCREW,Pozidriv Pan Hd, M5 x 20mm

MXM175, MXM190

2шт.

4

82014551

NUT

M10 x 1.5 x 24.5, Rivet Type

3шт.

5

14420121

HEX SOC SCREW,M10 x 25mm, Cl 8.8

3шт.
