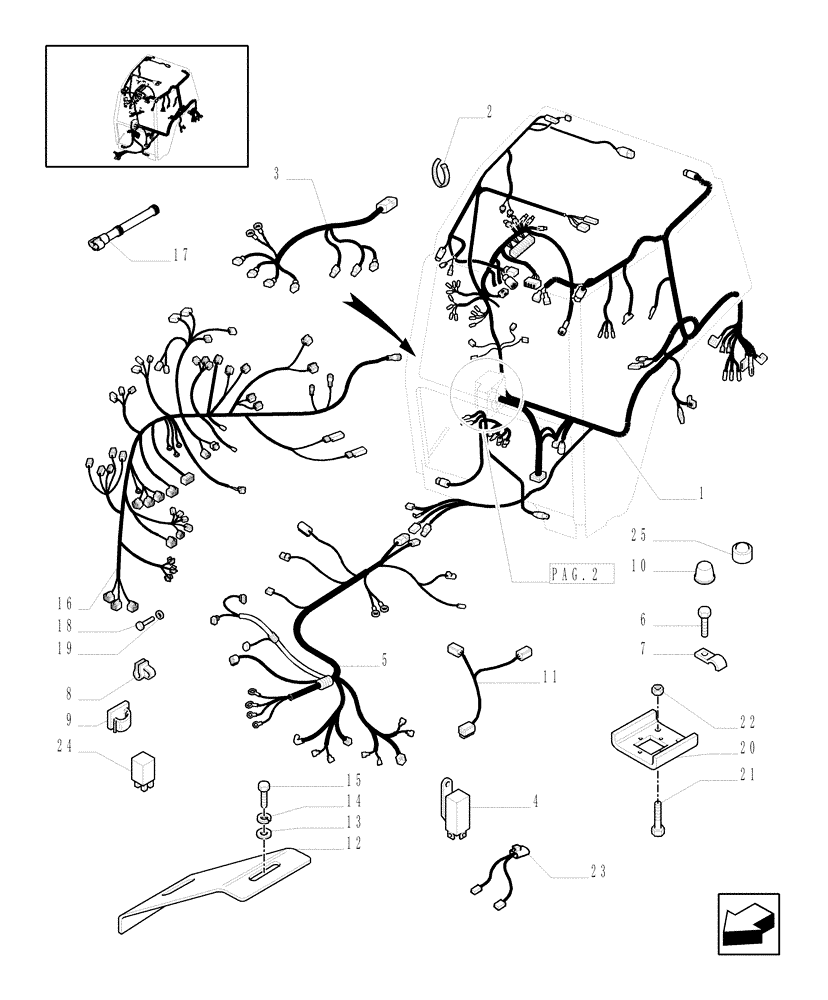

Запчасти Case IH MXM120 (1.91.4[01A]) - CABLES AND FUSE BOX - D4868 - C5498 (10) - OPERATORS PLATFORM/CAB

1

82034561

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, Serial Range: -ACM263457

1шт.

W/Mec. Trans. 20 x 16

1шт.

1

82034547

WIRE HARNESS

Main Rear, MXM175, MXM190, Serial Range: -ACM263457

1шт.

1

82034560

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, Serial Range: -ACM263457

1шт.

W/HI-LO Trans. 24 x 12 (40 KPH-4WD) Equip. 272

1шт.

1

82034548

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, MXM155, Serial Range: -ACM263457

1шт.

W/Full Power Shift Trans. 18 x 6 (40 KPH 4WD) and 17 x 6 (30 KPH) Equip. 281

1шт.

1

87301852

WIRE HARNESS

Main Rear, MXM175, MXM190, Serial Range: ACM263458-ACM267460

1шт.

W/Full Power Shift

1шт.

1

87537902

WIRE HARNESS

MXM175, MXM190, Start Serial: ACM267461

1шт.

W/Full Power Shift

1шт.

1

87301853

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, MXM155, Start Serial: ACM263458

1шт.

W/Full Power Shift Trans. 18 x 6 (40 KPH 4WD) and 17 x 6 (30 KPH) Equip. 281

1шт.

1

87301854

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, MXM155, Serial Range: ACM263458-ACM265008

1шт.

1

87309545

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, MXM155, Start Serial: ACM265009

1шт.

1

87301855

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, Start Serial: ACM263458

1шт.

W/HI-LO Trans. 24 x 12 (40 KPH) Equip. 272

1шт.

1

87301856

WIRE HARNESS

Main Rear, MXM120, MXM130, MXM140, Start Serial: ACM263458

1шт.

W/Mec. Trans. 20 x 16

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

3

82011886

WIRE HARNESS

Console, RH

1шт.

4

82015353

RELAY,12V, 0.88A

Turn Indicator

1шт.

5

82034545

WIRE HARNESS

Main Front, MXM175, MXM190, Serial Range: -ACM247564

1шт.

5

87301849

WIRE HARNESS

Main Front, MXM175, MXM190, Serial Range: ACM247565-ACM263457

1шт.

5

82034546

WIRE HARNESS

Main Front, MXM120, MXM130, MXM140, MXM155, Serial Range: -ACM247564

1шт.

5

87301850

WIRE HARNESS

Main Front, MXM120, MXM130, MXM140, MXM155, Serial Range: ACM247565-ACM263457

1шт.

5

87331323

WIRE HARNESS

Main Front, MXM120, MXM130, MXM140, MXM155, Start Serial: ACM263458

1шт.

5

87331324

WIRE HARNESS

Main Front, MXM175, MXM190, Start Serial: ACM263458

1шт.

6

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 16

3шт.

7

83976853

CLIP,12.7mm, Coat, 11.5mm Bolt Hole, J Type

1шт.

8

81813738

CLIP

1шт.

9

83918745

SPRING CLIP

4шт.

10

81864706

BOOT

3шт.

11

82015068

WIRE HARNESS

HPL Pump, Open Center, MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

12

82015352

PLATE

2шт.

13

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

14

12035670

LOCK WASHER

M6

4шт.

15

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

16

87301851

WIRE HARNESS

MXM175, MXM190, Start Serial: ACM263458

1шт.

Main Electronic Full Power shift

1шт.

16

82034562

WIRE HARNESS

MXM175, MXM190, Serial Range: -ACM263457

1шт.

Main Electronic Full Power shift

1шт.

17

82036572

WIRE HARNESS,120 ohm

1шт.

For MXM175, MXM190 W/Electronic Remote

1шт.

18

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

19

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

20

82035501

BRACKET

MXM175, MXM190

1шт.

21

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

4шт.

21

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

23

82028417

WIRE HARNESS

Trans. Control

1шт.

24

82017871

RELAY,12V, 20A

MXM175, MXM190, Start Serial: 230124

2шт.

25

87533425

COVER,M6

2шт.
