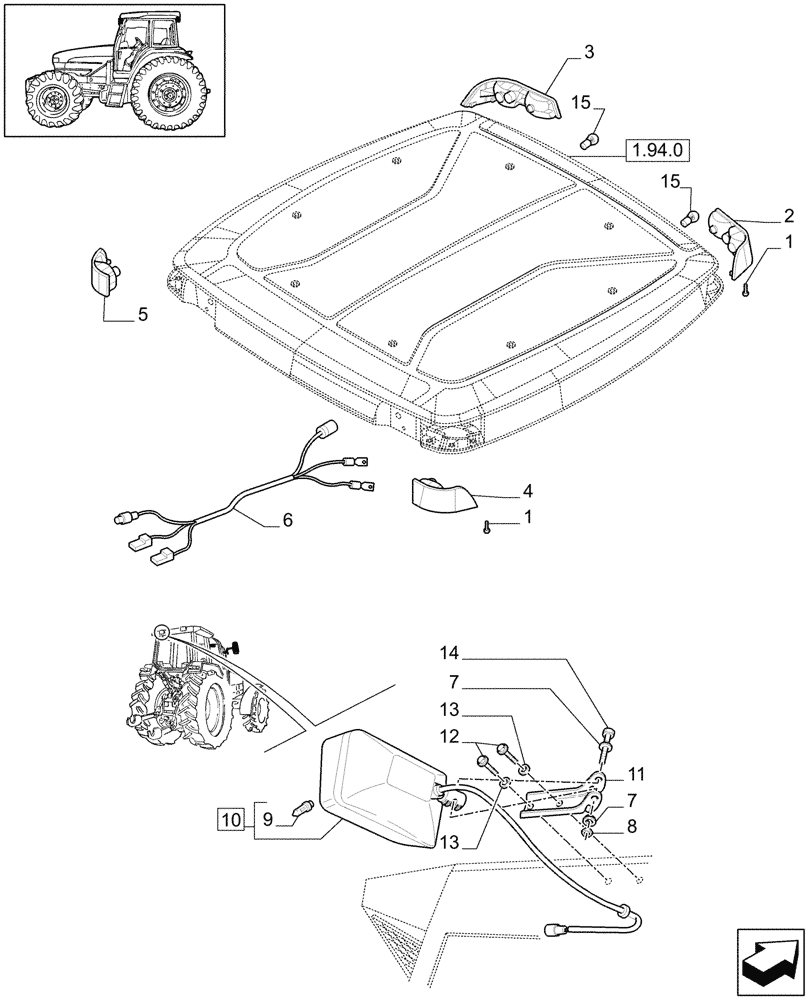

Запчасти Case IH MXM120 (1.91.3[01]) - WORK LAMPS (10) - OPERATORS PLATFORM/CAB

1

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

10шт.

2

279228A1

WORK LAMP,Halogen, 12V, 37.5W, Amber/Clear

RH, Front

1шт.

3

279227A1

WORK LAMP

LH, Front

1шт.

4

279229A1

WARNING LIGHT

RH, Rear

1шт.

Bulb already included. No hole on the back for the bulb.

1шт.

5

279231A1

WARNING LIGHT

LH, Rear

1шт.

Bulb already included. No hole on the back for the bulb.

1шт.

6

82026138

WIRE HARNESS

RH, Rear

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

8

14048221

NUT,M8 x 1.25, Cl 10

2шт.

9

14151590

BULB,H3, 12V, 55W

2шт.

10

82026139

WORK LAMP

RH

1шт.

10

82026141

WORK LAMP

LH

2шт.

11

82025464

BRACKET

2шт.

12

13632821

CAPTIVE WASHER SCREW,M8 x 25mm

4шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

15

323094A1

BULB

894-12V (37W-Halogen)

2шт.
