Запчасти Case IH MXM120 (1.91.1/14) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - SWITCH (10) - OPERATORS PLATFORM/CAB

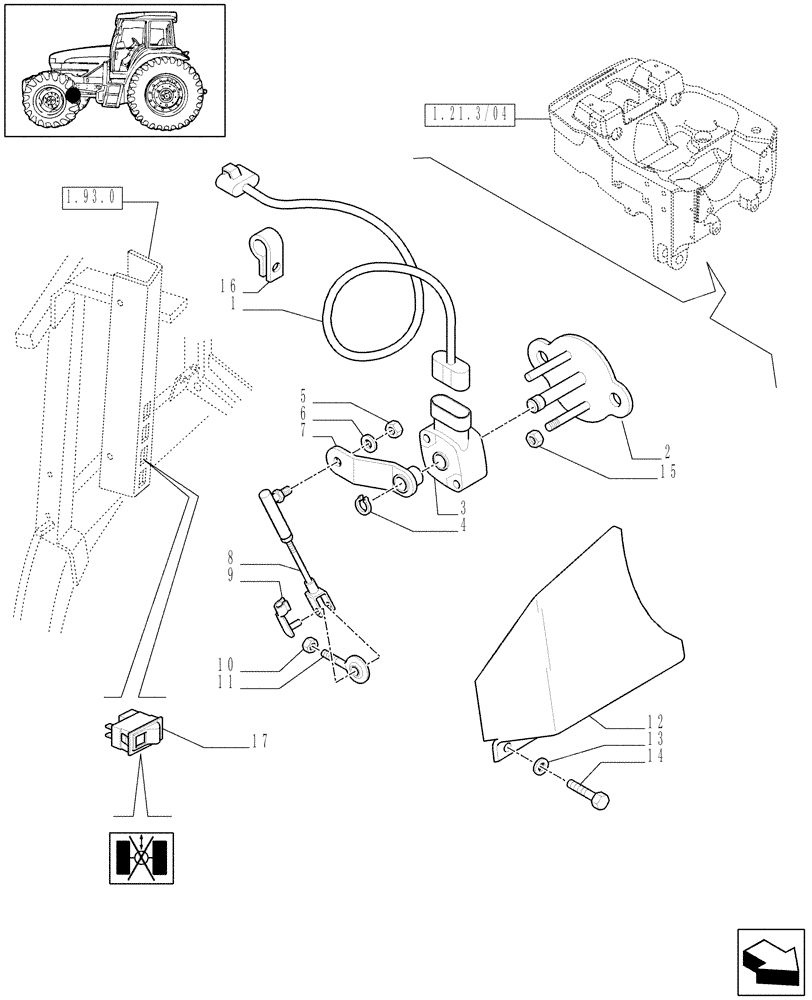

Схема запчастей Case IH MXM120 - (1.91.1/14) - (VAR.519-520) CLASS 4 4WD FRONT AXLE WITH SUSPENSIONS AND "TERRALOCK" - SWITCH (10) - OPERATORS PLATFORM/CAB
11
1
7
16
13
4
9
17
5
12
1.21.3/04
1.93.0
3
15
2
8
10
6
14

Артикул

Название

Примечание

Количество

1

82022099

WIRE HARNESS

1шт.

2

87584115

BRACKET

1шт.

3

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Serial Range: -C5735

1шт.

3

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D5735

1шт.

4

11087871

CIRCLIP,M7

1шт.

5

12574211

NUT,M6 x 1, Cl 8

1шт.

6

89824259

WASHER

M6

1шт.

7

82016939

ARM

1шт.

8

82016945

LINK

1шт.

9

82016944

PIN,6mm OD x 14mm L

1шт.

10

82879533

NUT

M6

1шт.

11

82016943

EYE,M6 x 1

1шт.

12

82022043

GUARD

1шт.

13

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

6шт.

14

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

6шт.

15

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

16

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

2шт.

17

82020403

SWITCH ASSY

Suspension Lock

1шт.

Выбрано товаров: 18
