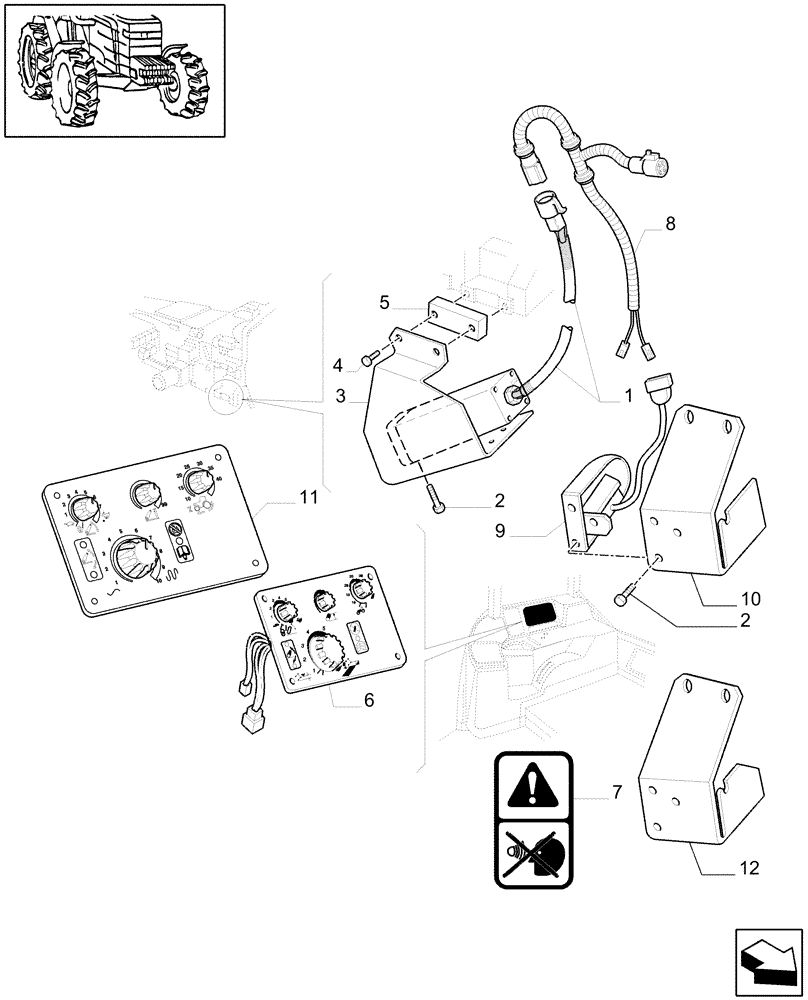

Запчасти Case IH MXM120 (1.91.1/02) - (VAR.743) RADAR UNIT - JAPAN (10) - OPERATORS PLATFORM/CAB

1

82021164

RADAR

, Serial Range: -ACM272692

1шт.

2

81821499

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Cap, HH, G5, 1/4"-20 x 1/2"

4шт.

3

82017858

BRACKET

MXM120, MXM130, MXM140, MXM155, Serial Range: -ACM272692

1шт.

3

82012458

BRACKET

MXM175, MXM190, Serial Range: -ACM272692

1шт.

4

11124921

BOLT,Hex, M20 x 60, 8.8

2шт.

5

82017860

SPACER

1шт.

6

82026307

PANEL

EDC w/Slip L/Elec Lk Level, Serial Range: -C5321

1шт.

7

82002071

DECAL

WARNING, Radar, Serial Range: -C5744

1шт.

7

82025618

DECAL

Radar, French, Start Serial: D5415

1шт.

7

82025619

DECAL

Radar, Spanish, Start Serial: D5415

1шт.

8

86513451

WIRE HARNESS

Radar Adapter (Equip.464)

1шт.

9

87367899

RADAR

, Start Serial: ACM272693

1шт.

10

87367903

BRACKET

MXM120, MXM130, MXM140, MXM155, Serial Range: ACM272693-ACM287715

1шт.

10

87367905

BRACKET

MXM175-MXM190, Serial Range: ACM272693-C5415

1шт.

10

87565942

BRACKET

MXM175-MXM190, Start Serial: D5415

1шт.

11

87397179

PANEL

EDC w/Slip/Diverter Valve, Serial Range: D5321-C5425

1шт.

11

87530853

PANEL

EDC w/Slip L/Diverter Valve, Start Serial: D5425

1шт.

12

87565940

BRACKET

MXM120, MXM130, MXM140, MXM155, Start Serial: ACM287716

1шт.
