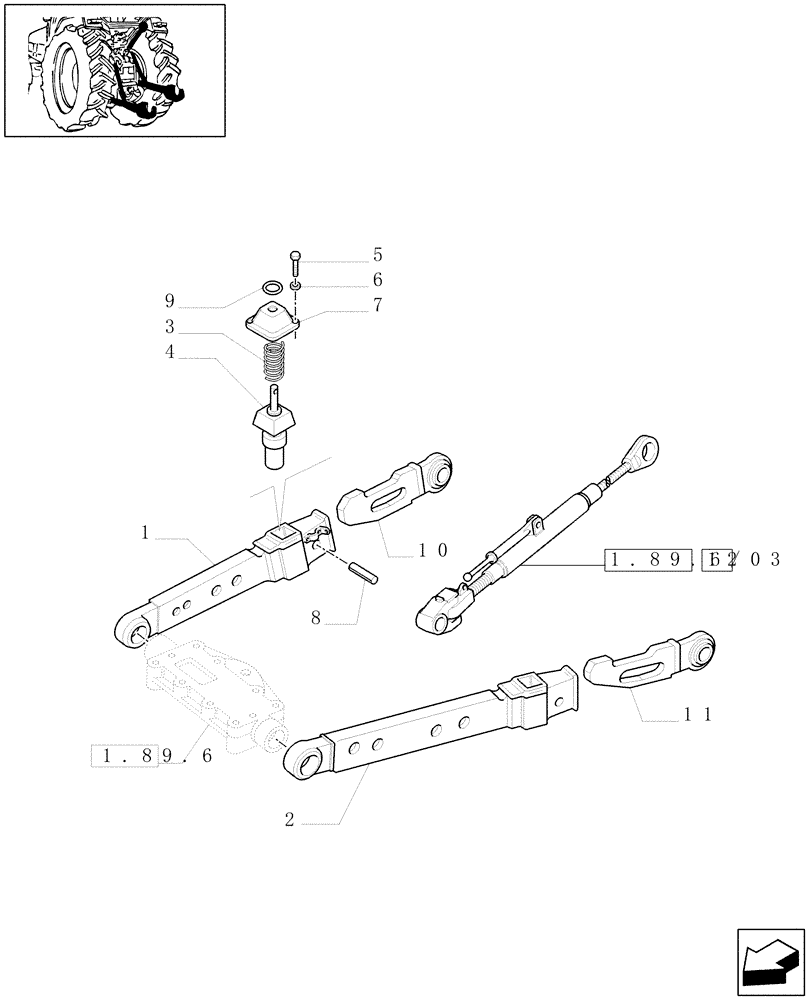

Запчасти Case IH MXM120 (1.89.9/03[01]) - (VAR.911) IMPLEMENT CARRIER (TELESCOPIC ARMS), ANTI-SHAKE PLATES - C5155 (09) - IMPLEMENT LIFT

1

82019024

LIFT ARM

RH, Assy,Incl.3,4,5,6,7,8,10, Serial Range: -C5155

1шт.

2

82019025

LIFT ARM

LH, Assy,Incl.3,4,5,6,7,8,11, Serial Range: -C5155

1шт.

3

5192222

SPRING

2шт.

4

5192223

PIN

2шт.

5

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

6

12035670

LOCK WASHER

M6

4шт.

7

5192224

COVER

2шт.

8

82019042

ROLL PIN

2шт.

9

5192225

CIRCLIP

2шт.

10

82019026

LIFT LINK END ASSY

RH, Cat. 2

1шт.

11

82019027

LIFT LINK END ASSY

LH, Cat.2

1шт.

12

5172580

TOP LINK

, Serial Range: -ACM192503

1шт.

12

47125910

TOP LINK

, Serial Range: ACM192504-C5155

1шт.
