(1.89.6/09C) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD AND 3 POINT LINK FOR CLOSED CCLS CENTRE - HOOK

Запчасти Case IH MXM120 (1.89.6/09C) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD AND 3 POINT LINK FOR CLOSED CCLS CENTRE - HOOK (09) - IMPLEMENT LIFT

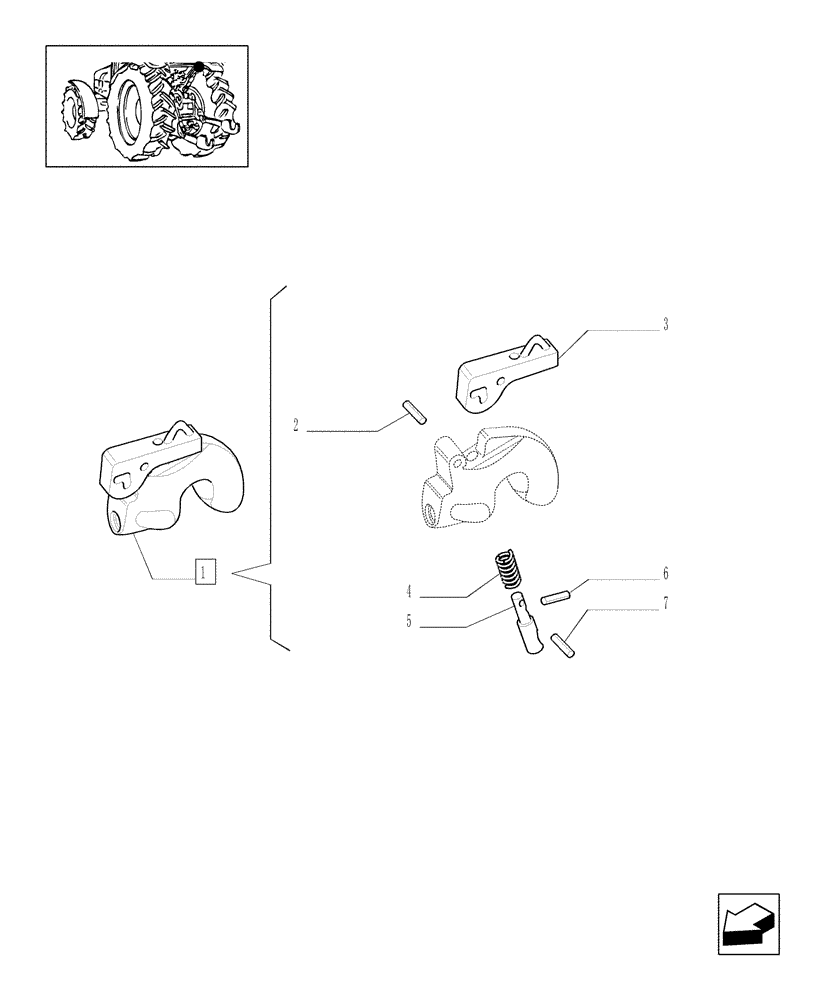

Схема запчастей Case IH MXM120 - (1.89.6/09C) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD AND 3 POINT LINK FOR CLOSED CCLS CENTRE - HOOK (09) - IMPLEMENT LIFT
3
4
2
1
5
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174404

HOOK

1шт.

2

9966523

ROLL PIN

1шт.

3

9966549

LEVER

1шт.

4

9966524

SPRING

1шт.

5

9966527

PIN

1шт.

6

9966521

ROLL PIN

1шт.

7

9966522

ROLL PIN

1шт.
