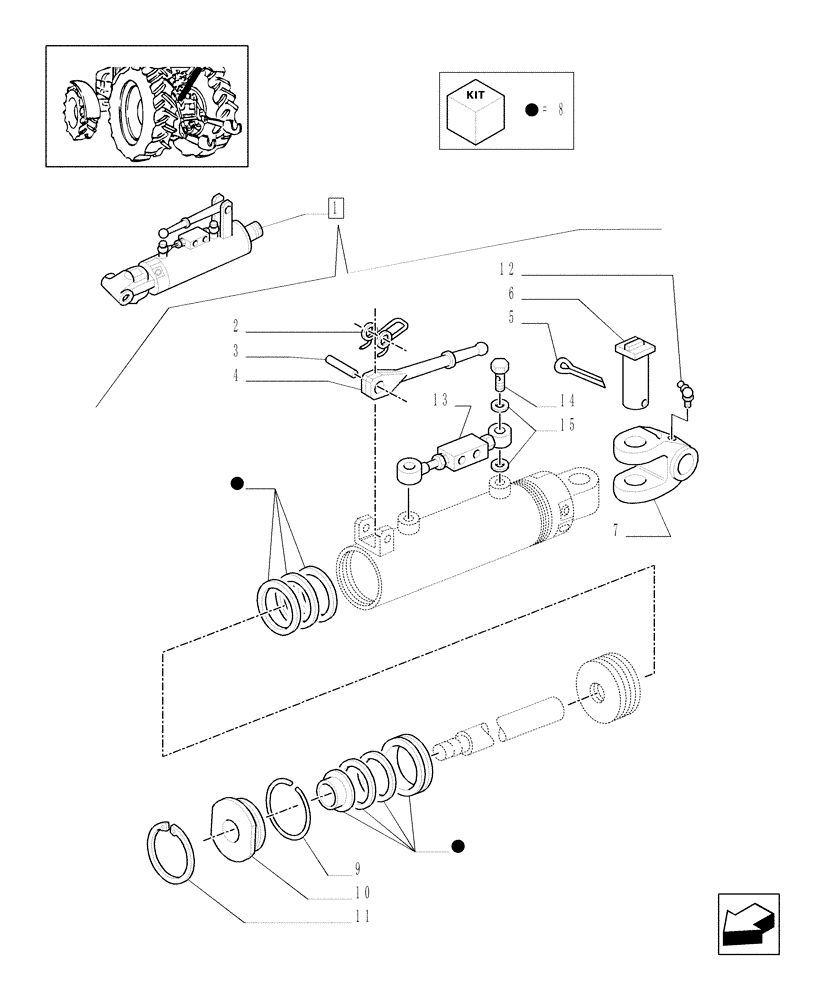

Запчасти Case IH MXM120 (1.89.6/09B) - (VAR.900) HYDR. ADJUSTMENT OF RIGHT TIE-ROD AND 3 POINT LINK FOR CLOSED CCLS CENTRE - CYLINDER (09) - IMPLEMENT LIFT

1

47125866

UPPER LINK

1шт.

2

5157707

SPRING CLIP

1шт.

3

14613570

COTTER PIN,M12 x 45, Slotted

1шт.

4

5172394

LEVER

1шт.

5

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

6

5161789

PIN,34mm OD x 91mm L

1шт.

7

5161787

YOKE,28mm D x 28mm D

1шт.

8

9970489

KIT

Gaskets

1шт.

9

5192132

CIRCLIP

1шт.

10

9970485

GLAND

1шт.

11

5192129

LOCKING RING

1шт.

12

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

13

9970490

HYDRAULIC VALVE

1шт.

14

9970482

BANJO BOLT

2шт.

15

5192132

CIRCLIP

4шт.
