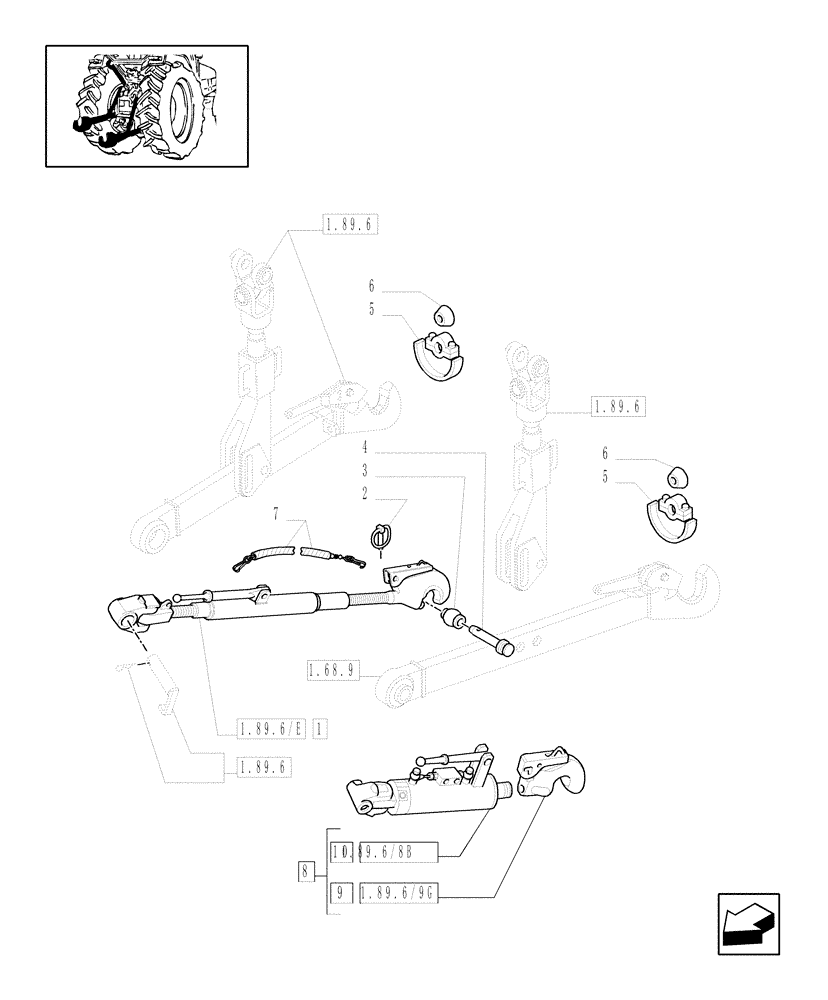

Запчасти Case IH MXM120 (1.89.6/06) - (VAR.853) IMPLEMENT ATTACHMENT DEVICE (2-3 CLASS) FOR ELECTRONIC LIFT - SPRAG (09) - IMPLEMENT LIFT

1

5174532

TOP LINK

, Serial Range: -ACM192503

1шт.

1

47125910

TOP LINK

, Serial Range: ACM192504-228934

1шт.

2

5166585

LOCK PIN,11mm OD

1шт.

3

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

Cat. 2

1шт.

3

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

Cat. 3

1шт.

4

44015196

PIN,31.75mm OD x 146mm L

1шт.

5

5128901

ECCENTRIC

Cat. 3

2шт.

6

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

7

5174402

LINK CHAIN,1500mm L

Cat. 3

1шт.

8

82032588

LIFT CYLINDER

, Start Serial: 228935

1шт.

9

82032580

HOOK

, Start Serial: 228935

1шт.

10

47125866

UPPER LINK

, Start Serial: 228935

1шт.
