Запчасти Case IH MXM120 (1.89.5/02) - (VAR.080) HYDRAULIC AUTOMATIC PICK UP HITCH FOR 1 AUXILIARY RAM (09) - IMPLEMENT LIFT

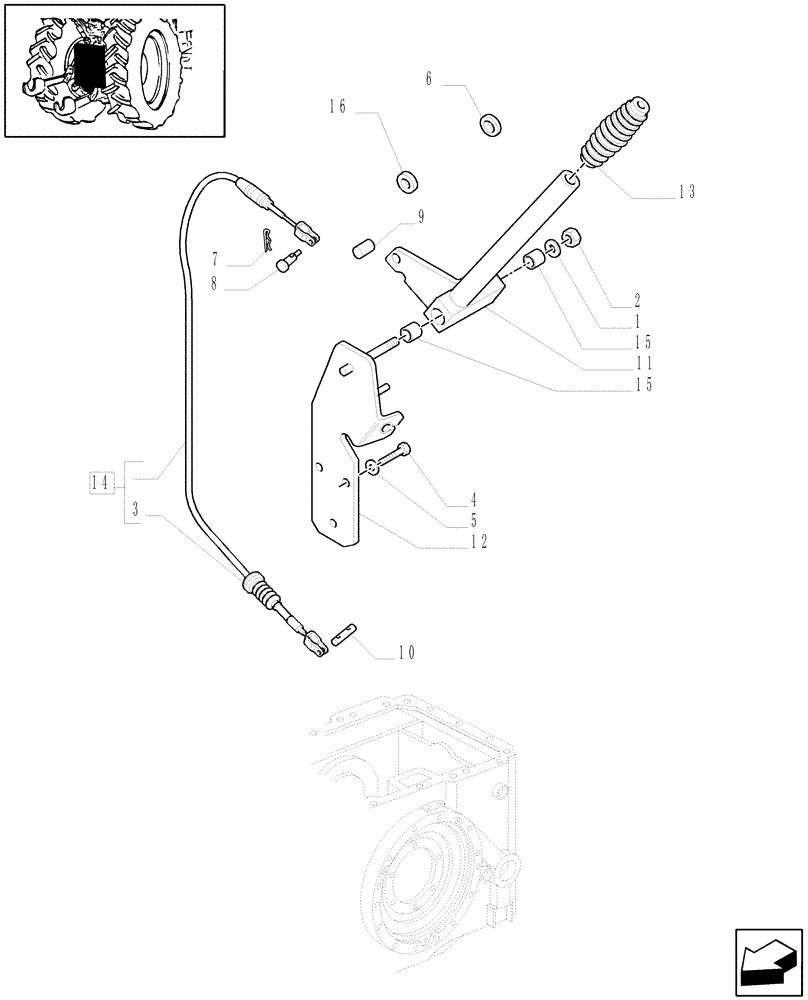

Схема запчастей Case IH MXM120 - (1.89.5/02) - (VAR.080) HYDRAULIC AUTOMATIC PICK UP HITCH FOR 1 AUXILIARY RAM (09) - IMPLEMENT LIFT
8
0
1
11
5
2
4
4
2
1
13
15
1
5
1
3
6
1
9
7
1
6

Артикул

Название

Примечание

Количество

1

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

2

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

10571371

LOCK WASHER,M4

2шт.

7

82033370

COTTER PIN,10mm OD

1шт.

8

81868749

PIN,7.9mm OD x 15.08mm L

15/16" x 19/32"

1шт.

9

87330882

CAP,End, 23.80mm ID x 25mm L

D=23.8

1шт.

9

87330878

CAP,9.50mm ID x 13.30

D=9.5

1шт.

10

83957394

PIN,0.072" x 0.82"

1шт.

11

87665892

LEVER

1шт.

12

87306928

SUPPORT

1шт.

13

87666034

HANDLE GRIP

Black

1шт.

14

87308075

CABLE,1860mm L

1шт.

15

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

16

81822628

CIRCLIP,1/2"

1шт.

Выбрано товаров: 17
