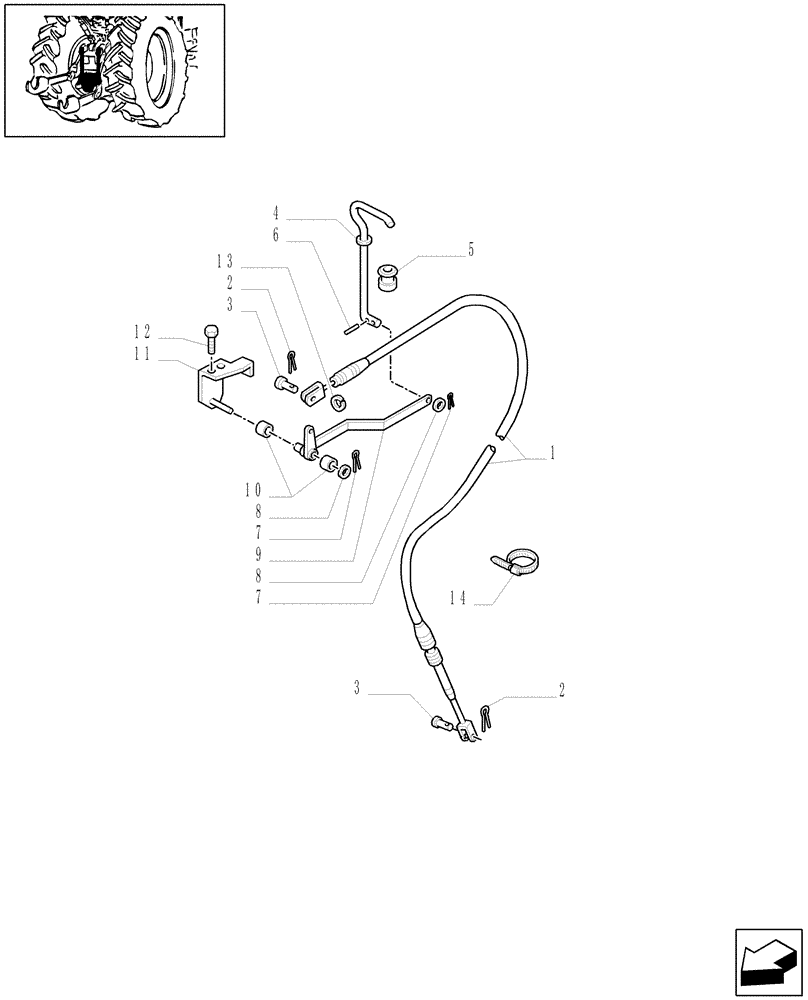

Запчасти Case IH MXM120 (1.89.3/05) - (VAR.080-248) HYDRAULIC AUTOMATIC PICK UP HITCH FOR 1/2 AUXILIARY RAM (09) - IMPLEMENT LIFT

1

82011893

CABLE,1740mm L

1шт.

2

82033370

COTTER PIN,10mm OD

2шт.

3

81868749

PIN,7.9mm OD x 15.08mm L

15/16" x 19/32"

2шт.

4

82003523

LEVER,12mm OD

1шт.

5

81865572

GROMMET

1шт.

6

82000865

PIN,3mm OD x 16mm L

1шт.

7

80080756

COTTER PIN

1/8" x 3/4"

2шт.

8

83909861

WASHER,13.72mm ID x 26.92mm OD x 2.41mm Thk

G8

2шт.

9

82003522

LEVER

1шт.

10

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

11

82003521

BRACKET

1шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

13

81822628

CIRCLIP,1/2"

1шт.

14

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP 3/32" x 11-1/2" L

1шт.
