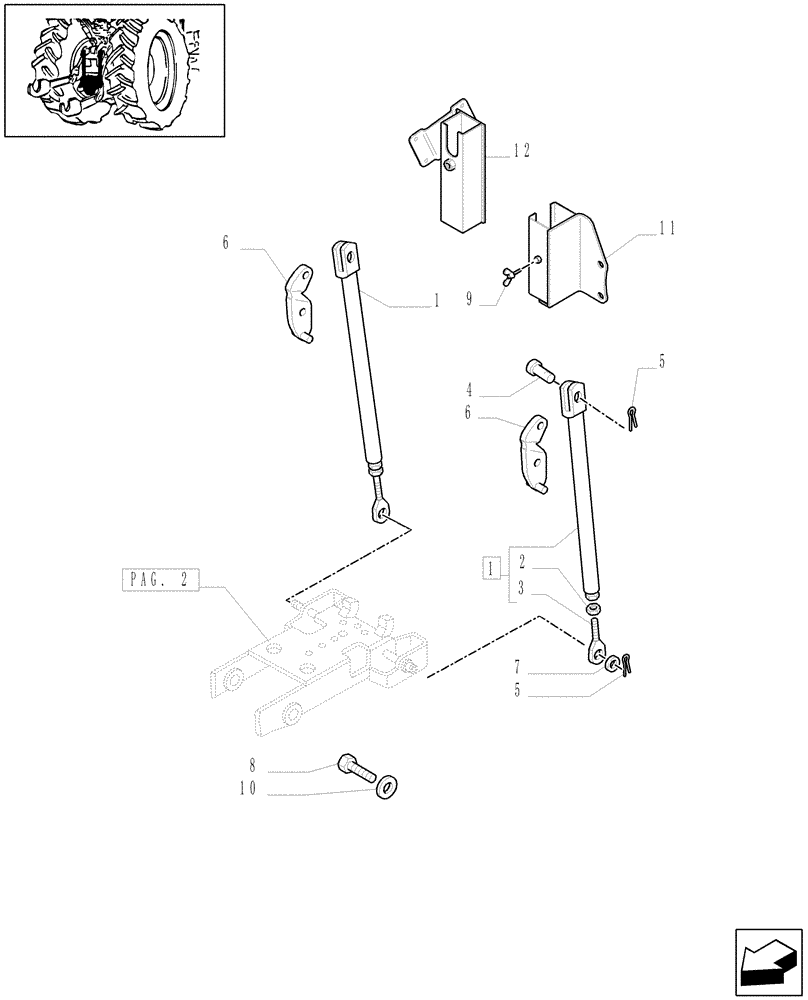

Запчасти Case IH MXM120 (1.89.3/04[03]) - (VAR.080-248) HYDRAULIC AUTOMATIC PICK UP HITCH FOR 1/2 AUXILIARY RAM (09) - IMPLEMENT LIFT

1

82036635

TIE-ROD

Assy

2шт.

2

10703211

THIN NUT,Thin, M18 x 1.5, Cl R04

2шт.

3

82012780

CLEVIS,M18

M18

2шт.

4

82001701

PIN,25mm OD x 61mm L

2шт.

5

81868739

COTTER PIN

4шт.

6

82028088

SUPPORT

LH

1шт.

6

82028089

SUPPORT

RH

1шт.

7

9825305

WASHER,25.65mm ID x 46.43mm OD x 3.17mm Thk

1"

2шт.

8

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

9

82039554

WING NUT,Screw, M10 x 20.00mm, STL, ZND

1шт.

10

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

11

87601319

BRACKET

1шт.

12

87517338

BRACKET

1шт.

Valid for VAR.248

1шт.
