(1.89.3/02) - (VAR.898/1) AUTOMATIC HITCH (WITHOUT ADDITIONAL JACKS)

Запчасти Case IH MXM120 (1.89.3/02) - (VAR.898/1) AUTOMATIC HITCH (WITHOUT ADDITIONAL JACKS) (09) - IMPLEMENT LIFT

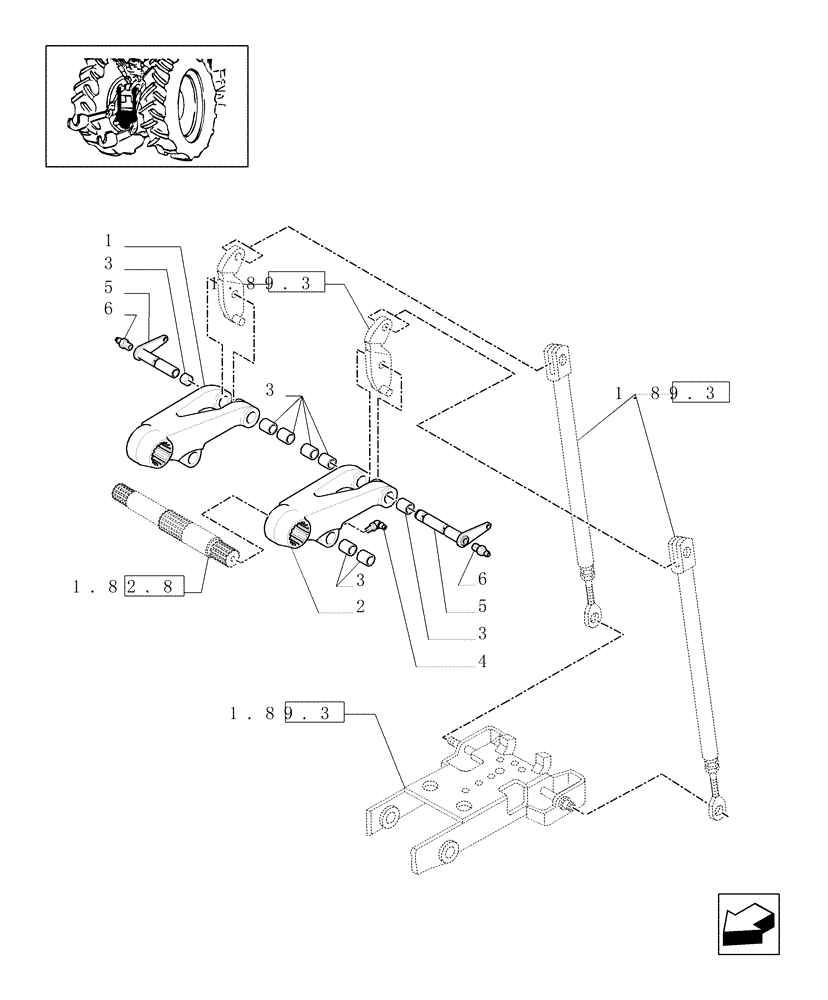

Схема запчастей Case IH MXM120 - (1.89.3/02) - (VAR.898/1) AUTOMATIC HITCH (WITHOUT ADDITIONAL JACKS) (09) - IMPLEMENT LIFT
6
2
3
4
3
6
5
1
3
1.82.8
1.89.3
1.89.3
3
5
1.89.3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82029711

ARM

RH

1шт.

2

82029708

ARM

LH

1шт.

3

5153140

BUSHING,25.25mm ID x 30mm OD x 20mm L

8шт.

4

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

5

5172007

PIN

2шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

Выбрано товаров: 6
