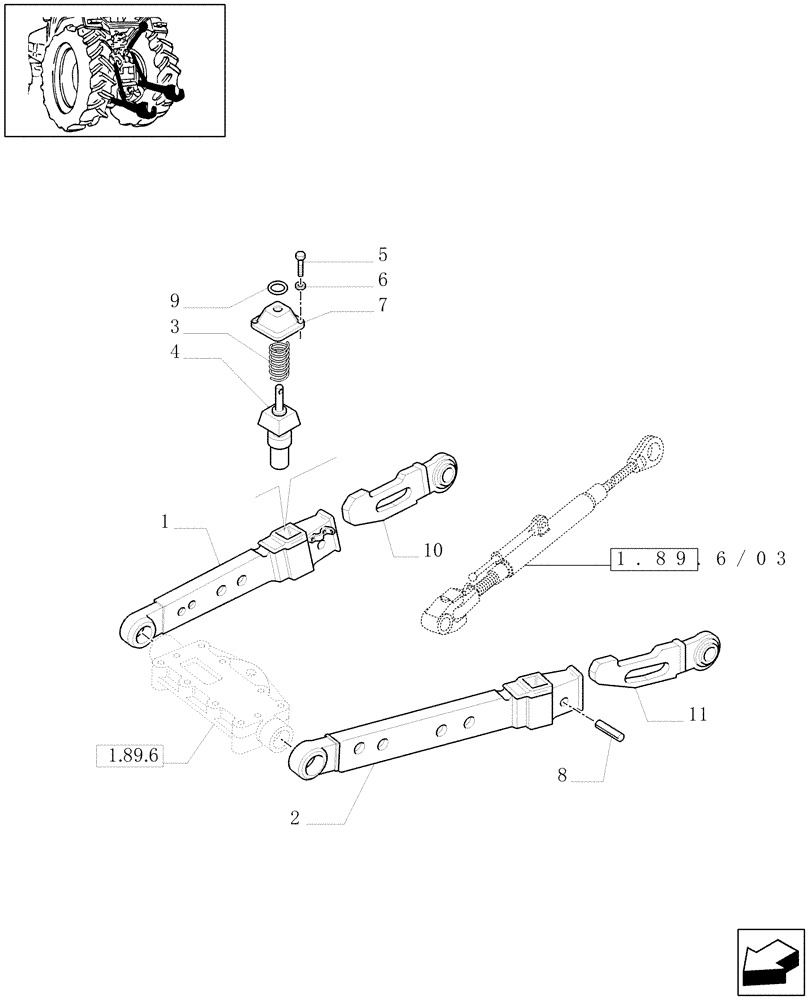

Запчасти Case IH MXM120 (1.89.2/02[01]) - (VAR.881) IMPLEMENT CARRIER (TELESCOPIC ARMS) CAT. 2 & 3 AND ANTI-SHAKE PLATES - C5155 (09) - IMPLEMENT LIFT

1

82019024

LIFT ARM

RH, Assy

1шт.

2

82019025

LIFT ARM

LH, Assy

1шт.

3

5192222

SPRING

2шт.

4

5192223

PIN

2шт.

5

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

6

12035670

LOCK WASHER

M6

4шт.

7

5192224

COVER

2шт.

8

82019042

ROLL PIN

2шт.

9

5192225

CIRCLIP

2шт.

10

82019026

LIFT LINK END ASSY

RH, Cat. 2

1шт.

11

82019027

LIFT LINK END ASSY

LH, Cat. 2

1шт.
