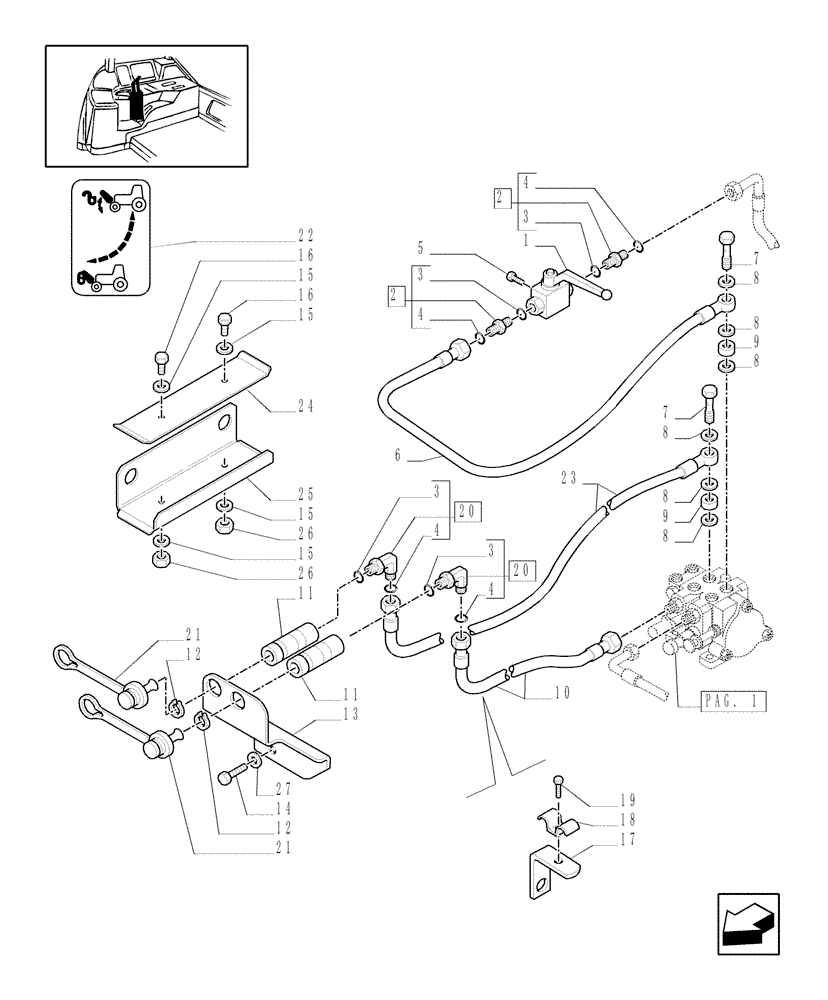

Запчасти Case IH MXM120 (1.82.7/07[02]) - (VAR.444) CONTROL VALVES WITH JOYSTICK FOR FRONT LIFT AND PIPES (07) - HYDRAULIC SYSTEM

1

82021833

SHUT-OFF VALVE

1шт.

2

5185524

HYD CONNECTOR

1"-14, G1/2"-14

2шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

4шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

2шт.

6

82020489

FLEXIBLE HOSE

Mid Mount Valve to Shut Off

1шт.

7

82020490

BANJO BOLT

M18 x 1.5

2шт.

8

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

6шт.

9

82020496

SPACER

18 x 26 x 6

2шт.

10

82023616

FLEXIBLE HOSE

Mid Mount, Serial Range: Valve-Coupler

1шт.

11

82020499

QUICK MALE COUPLING

2шт.

12

82854996

SNAP RING,1 1/2", Ext

4шт.

13

82027407

BRACKET

1шт.

14

11124421

BOLT,Hex, M20 x 40, 8.8

1шт.

15

14496404

WASHER,M6 x 12 x 2 Thk

4шт.

16

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

2шт.

17

82023661

BRACKET

1шт.

18

82020602

BRACKET

1шт.

19

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

3шт.

20

5185563

ELBOW

2шт.

21

5179576

PLUG,24mm, Green

Green, Std.

2шт.

22

82022067

DECAL

1шт.

23

82023630

FLEXIBLE HOSE

Mid Mount, Serial Range: Valve-Coupler

1шт.

24

5195847

BRACKET

1шт.

25

5195848

SUPPORT

1шт.

26

80353308

NUT

M6

2шт.

27

14497101

WASHER,M20 x 37 x 3

1шт.
