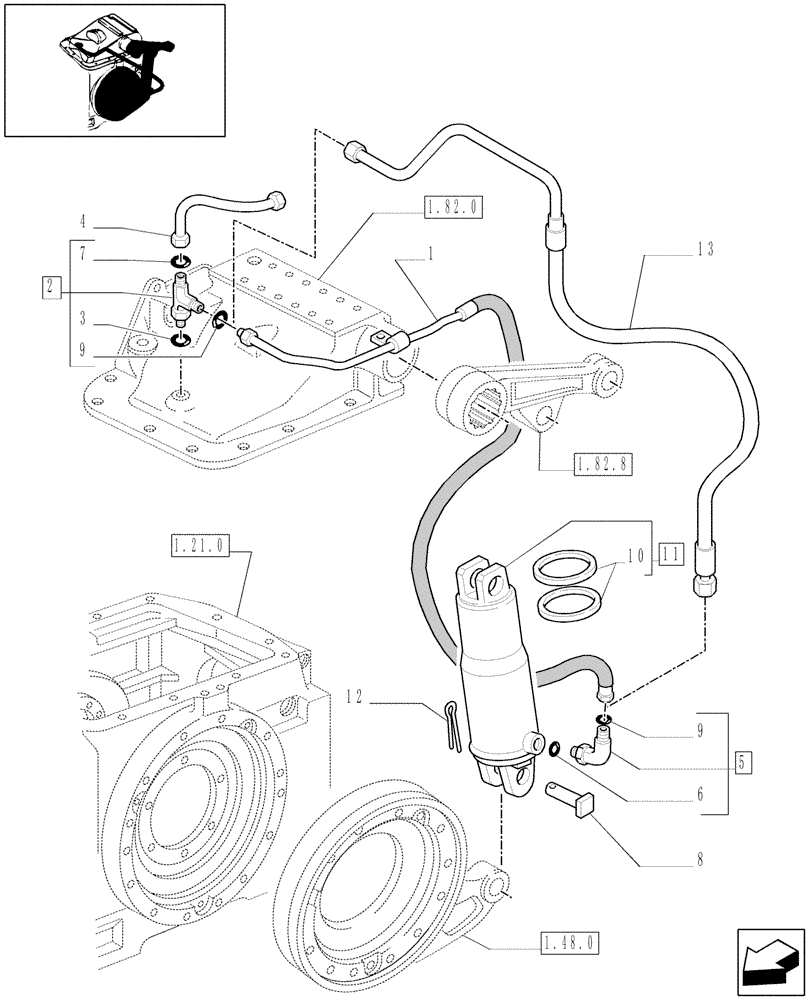

Запчасти Case IH MXM120 (1.82.6/02) - (VAR.783) LIFT ASSIST CYLINDER (07) - HYDRAULIC SYSTEM

1

5184845

FLEXIBLE HOSE

, Serial Range: -C5752

1шт.

2

5185049

TEE,1"-14 ORFS x 11/16-16 ORFS x M18 x 1.5 ORB

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

5184843

RIGID TUBE

1шт.

5

5185050

ELBOW,M16 x 1.5 x 37mm

M16 x 1.5

1шт.

6

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

7

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

LH

1шт.

8

5146401

PIN

2шт.

9

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

10

9966093

SEAL KIT

Gaskets

1шт.

11

47125823

LIFT CYLINDER

1шт.

12

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

13

87395284

PIPE

, Start Serial: D5752

1шт.
