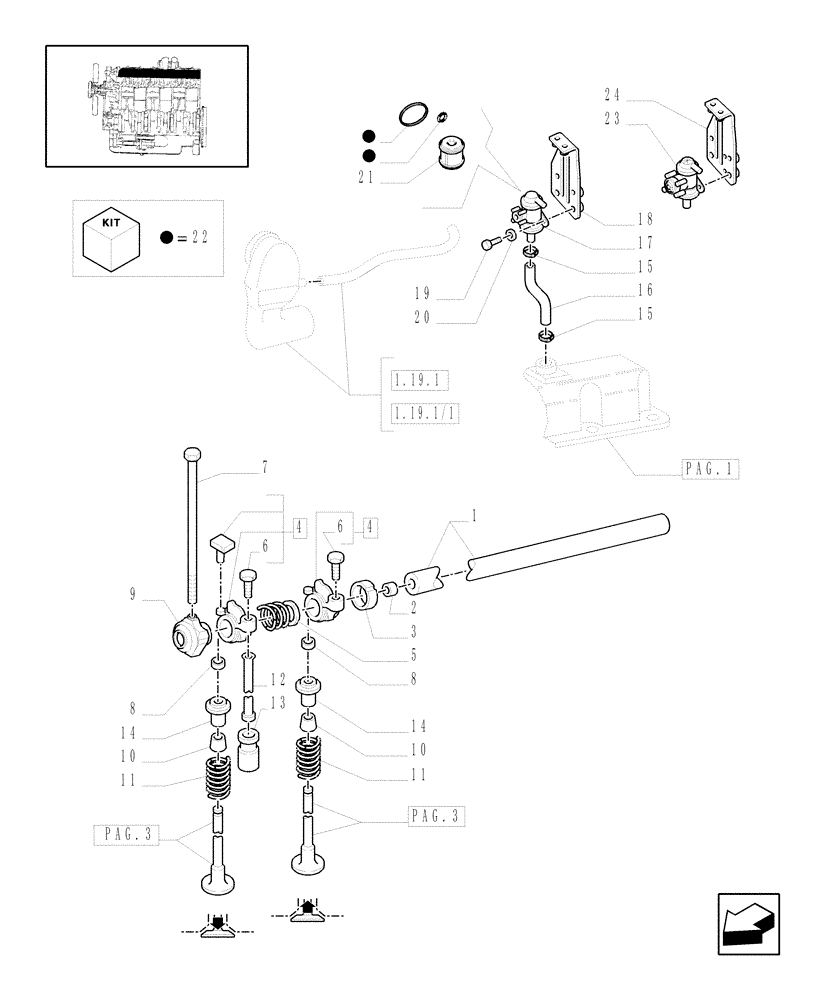

Запчасти Case IH MXM120 (0.06.0[02]) - CYLINDER HEAD, ROCKER ARM, VALVES & RELATED PARTS (01) - ENGINE

1

83903587

SHAFT

1шт.

2

83417040

PLUG

2шт.

3

81818731

SPACER

6шт.

4

87802660

ROCKER ARM

12шт.

5

81804341

SPRING

6шт.

6

87801302

ADJUSTMENT SCREW

12шт.

7

87802207

BOLT,Cyl Hd, 9/16" - 12 x 203.50mm

7шт.

8

87802301

RETAINER

24шт.

9

83903589

SUPPORT

7шт.

10

87801992

SEAL

12шт.

11

83999742

SPRING

12шт.

12

87802513

PUSH ROD

12шт.

13

87802716

TAPPET

12шт.

14

87802300

RETAINER

12шт.

15

82039347

HOSE CLAMP,35mm - 50mm, Worm Gear

2шт.

16

87360371

HOSE,38.50 mm ID x 117.00 mm

MXM120, MXM130, MXM140, MXM155

1шт.

16

87519518

HOSE,38.50 mm ID x 162.00 mm

MXM175, MXM190

1шт.

17

87803810

BODY

Includes 21, Serial Range: -ACM264533

1шт.

17

87342730

OIL SEPARATOR

Includes 21, Serial Range: ACM264534-ACM264533

1шт.

18

87802510

BRACKET

, Serial Range: -ACM264533

1шт.

19

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

20

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

21

87802519

AIR FILTER

1шт.

22

87803811

SEAL KIT

1шт.

23

87366042

BREATHER

, Start Serial: ACM264534

1шт.

24

87365118

BRACKET

, Start Serial: ACM264534

1шт.
